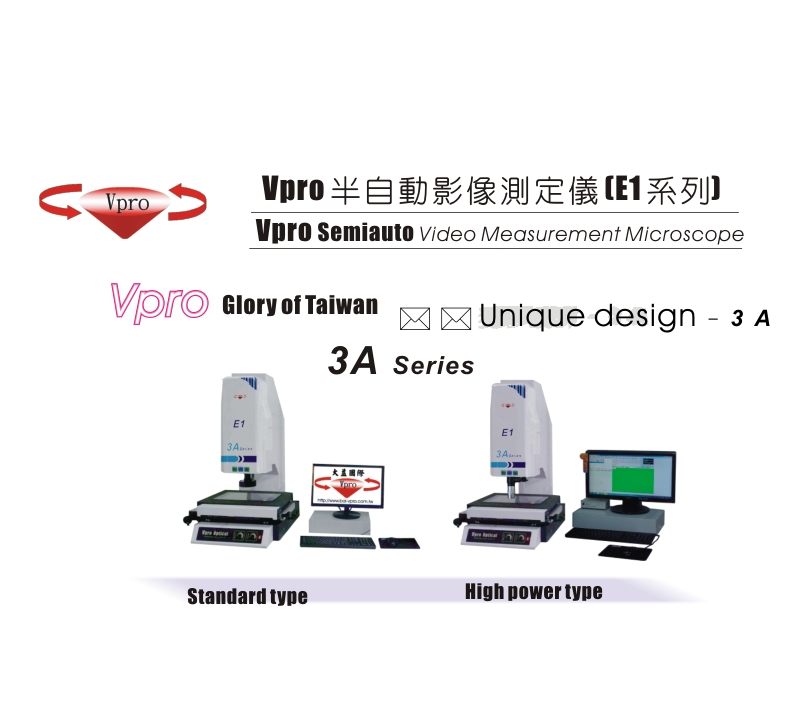

set up ◣≦『Image analyzer』≧◢ new standard
〒 3A And applicability
Auto Focusing : Its design is to reduce the human visual focal length
error, resulting in the imageis not clear,measurement
accuracy uncertainty.
Auto Zooming : Its design is to prevent the software and the lens after
correction, multiple timesinconsistent with the
measurement error.
Auto Lighting : It is designed to avoid different times and light
conditions,the impact of measurement accuracy
and stability.
〒Accuracy is ensured And applicability

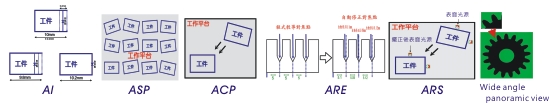

〒 Software users『Affinity』 and 『Convenience』
The ultimate performance
|
Models
|
E1(2010-3A)
|
E1(3020-3A)
|
E1(4030-3A)
|
|
Measuring range (mm)
|
200 x 100 x 150
|
300 x 200 x 150
|
400 x 300 x 150
|
|
Workpiece height
|
150 mm
|
||
|
Operation method
|
Semi-automatic = X/Y Measuring platform(Manual)；3A : Multiples, focus, light source (program control)
|
||
|
Minimum display value
|
Hardware: 0.001 mm (Spin wave optical scale) / software: 10 ~ 10 mm
|
||
|
Image device
|
1/3 inch industrial grade 1.3 million high resolution color image device
|
||
|
Optical multiple
|
Standard type:0.7 ~ 4.5 Times/ High power type:7~45 Times (Auto Zooming)
|
||
|
Image multiple
|
Standard type:35~225 Times/ High power type:150~900 Times (22 Inch TFT LCD screen)
|
||
|
Focusing system
|
Auto Focusing Programmable autofocus system
|
||
|
Light source system
|
Standard type: Auto Light Programmable automatic light source system (LED, 64 section design)
|
||
|
Coaxial light source
|
High-fold type: for small holes, deep holes, low contrast ,,, object to enhance the test reliability
|
||
|
System accuracy
|
±≦ 3+L/200 um ( L : Indicates the measured length, temperature : 20℃±1℃)
|
||
|
Workpiece weight limit
|
≦ 20 Kg
|
||
|
Measurement software
|
E1(M) + Win XP / Win 7 system
|
||
|
computer system
|
Host + 22" TFT LCD Screen
|
||
|
physical dimension (mm)
|
540 x 560 x 860
|
760 x 600 x 900
|
970 x 670 x 940
|
|
Instrument weight
|
110 Kg
|
140 Kg
|
240 Kg
|
|
Precision granite
|
X/Y Platform, base
|
||
|
power supply
|
AC 110V ~ 220V ； Simplex 50 / 60 Hz
|
||
|
Optional accessories
|
Auxiliary mirror: 0.5 times / 2 times, coaxial light source, lateral light source
|
||
