set up ◣≦『Image analyzer』≧◢ new standard
〒 i Series And applicability

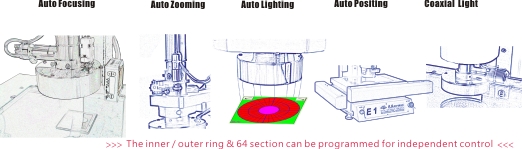

Auto Focusing : Its design is to reduce the human visual focal
length error, resulting in the image is not clear,
measurement accuracy uncertainty.
Auto Zooming : Its design is to prevent the software and the lens
after correction, multiple times inconsistent with
the measurement error.
Auto Lighting : It is designed to avoid different times and light
conditions, the impact of measurement
accuracy and stability.
Auto Positing : It is designed to quickly and accurately move
to a specified location for determination, to
avoid the error of human cognitive differences.

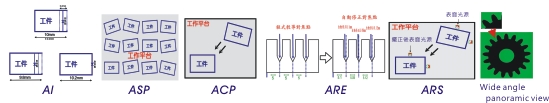

〒Reliability and applicability
〒 software users『affinity』 and『convenience』extreme performance
|

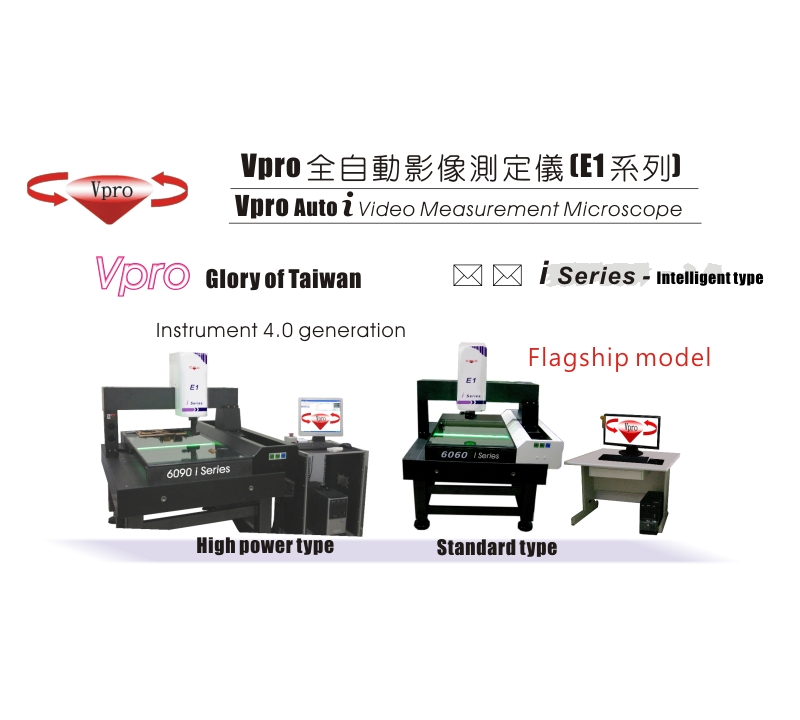

Models
|
E1(6060-i)
|
E1(6090-i)
|
|
|
Measuring range
|
600x600x150 mm
|
600x900x150 mm
|
|
|
Workpiece height
|
150 mm
|
||
|
Operation method
|
Fully automatic programmable air float bearing design control air source 5~7kg/cm²、120L/Min
|
||
|
Minimum display value
|
0.001 mm (standard type) / 0.0001 mm (high power type) (both sides of the wave optical scale loaded)
|
||
|
Image device
|
1/3 inch industrial grade 1.3 million high resolution color image device
|
||
|
Lens system
|
0.7 to 4.5 times (standard type) / 7 to 45 times (high power type) Programmable automatic zoom control system
|
||
|
Focusing system
|
Automatic Focus Control System
|
||
|
Light source system
|
Auto Light Programmable Automatic Light Source Control System (LED, 64 Section Design)
|
||
|
System accuracy
|
± ≦ 2 + L / 200 um (L: indicates the measured length, temperature: 20 ° C ± 1 ° C)
|
||
|
Workpiece weight limit
|
≦ 20 Kg
|
||
|
Measurement software
|
E1 (i) + Win XP / Win 7 system
|
||
|
computer system
|
Host + 22 "TFT LCD screen
|
||
|
physical dimension (WxDxH)
|
1200 x 1500 x 1500 mm
|
1200 x 2000 x 1500 mm
|
|
|
Instrument weight
|
950 Kg
|
1200 Kg
|
|
|
Instrument design
|
Determination of the platform (X / Y / Z), the base are all precision granite design (temperature expansion coefficient)
|
||
|
power supply
|
AC 110V ~ 220V ； Simplex50 / 60 Hz
|
||
|
Optional accessories
|
High-power lens: 5/10/20/50/100 times; auxiliary mirror: 0.5 / 2 times, coaxial light source
|
||
