Suitable for field measurement size and angle, and the use
of optical alignment of the film, can easily measure the size
of tools,gears, screws ... really achieve the ideal field instrument.
|

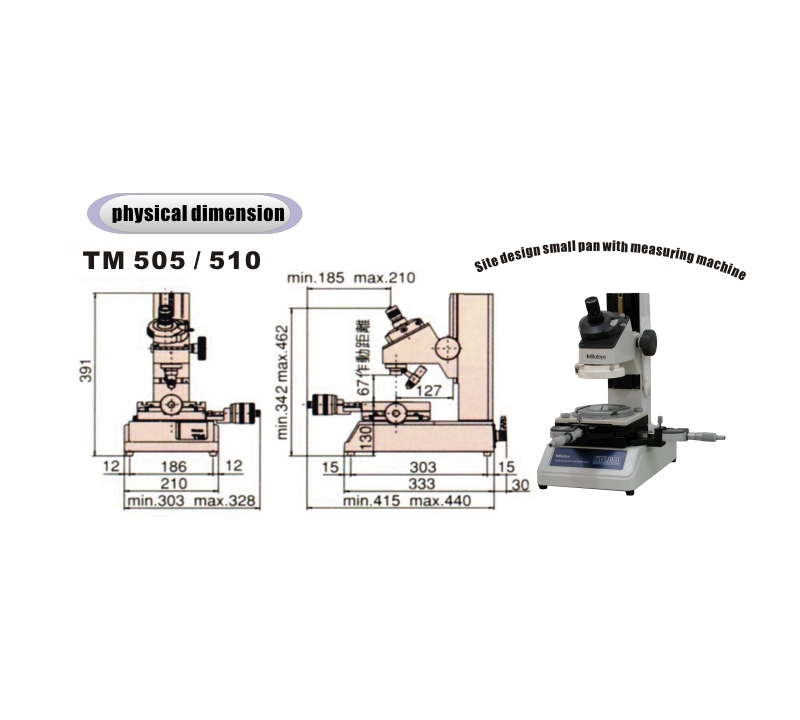

Models
|

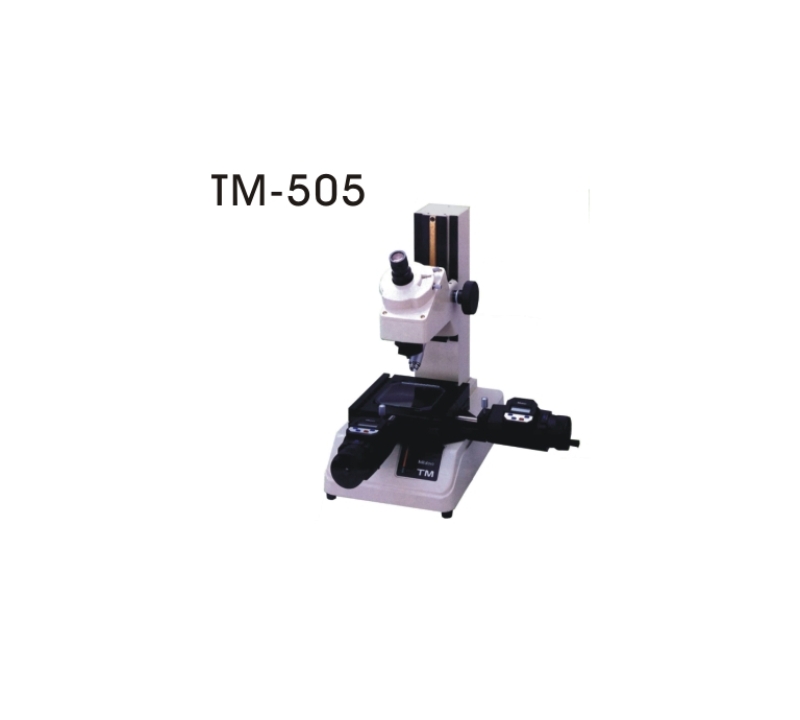

TM-505(Vpro)
|
TM-505
|
TM-505R
|

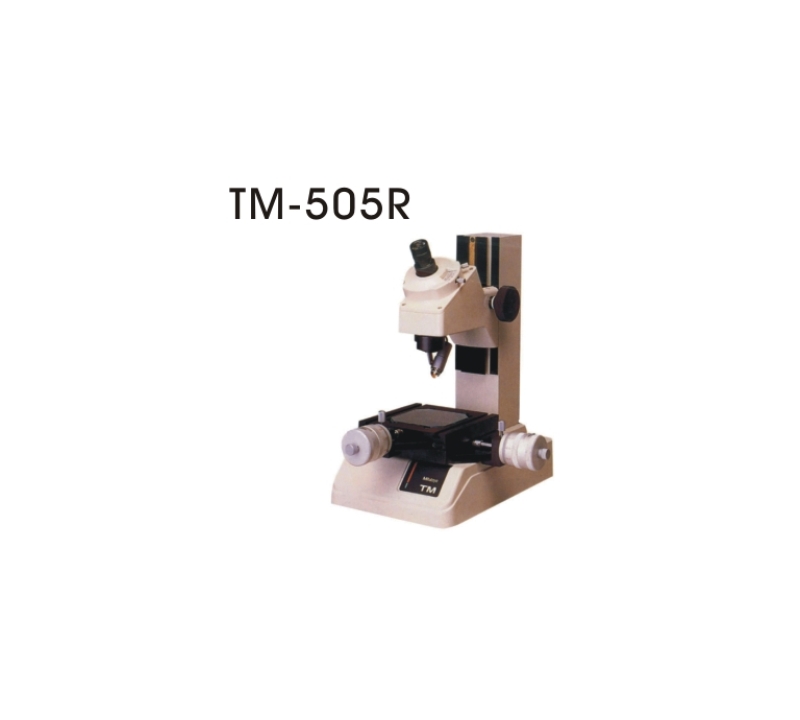

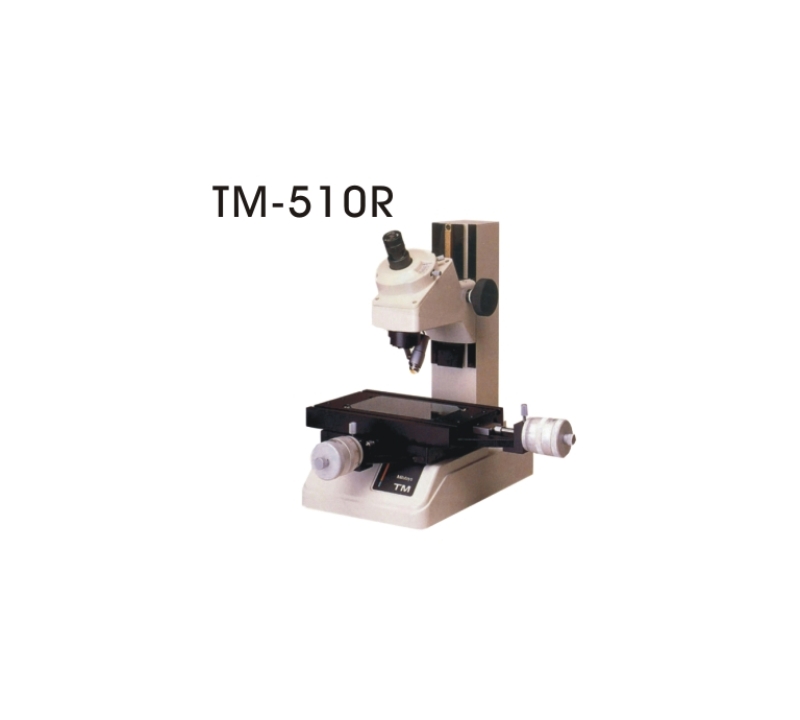

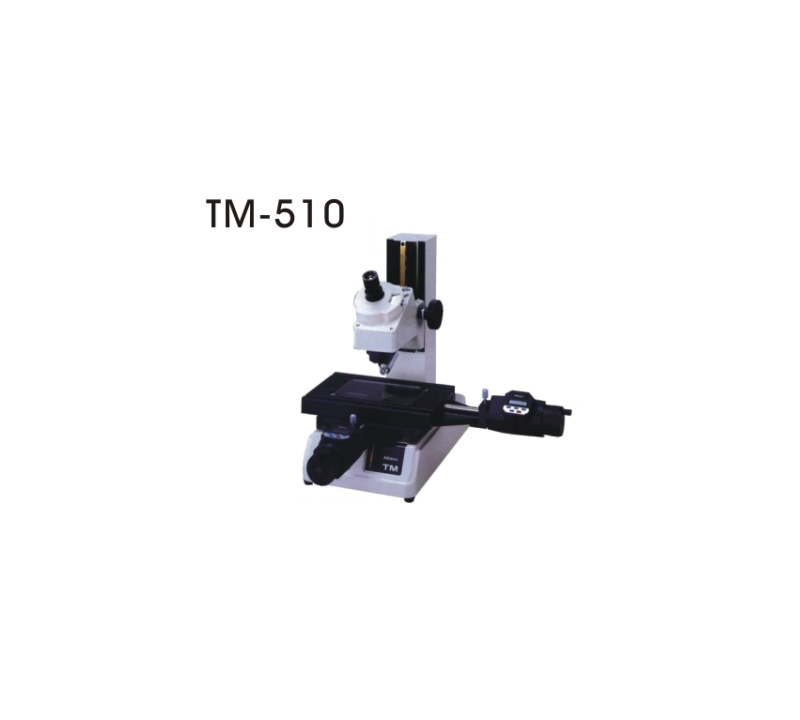

TM-510R
|
|
|
Type
|
Electronic probe
|
Scale probe
|
Electronic probe
|
Electronic probe
|
|
|
Optical mirror tube
|
Monocular 30 °; optical just 90 °; dashed line optical alignment; diopter adjustable
|
||||
|
Eyepiece measuring angle
|
Scale: 1 °; full range scale: 360 °; minimum cursor scale: 6
|
||||
|
Eyepiece
|
15 times (FN13)
|
||||
|
Contact lens was
|
2 times (NA:0.07)
|
||||
|
Focal length
|
67 mm
|
||||
|
Surface / contour light source
|
24 V / 2 W
|
||||
|
X / Y measurement range
|
25x25 mm / 0.001 mm
|
50x50 mm / 0.001 mm
|
100x50 mm / 0.001 mm
|
||
|
Standard accessories
|
Body, table, 15 times the eyepiece, 2 times the objective lens, sub-card head (1 pair - depending on the model)
|
||||
|
Maximum load
|
115 mm
|
107 mm
|
|||
|
maximum height
|
14 Kg
|
15 Kg
|
|||
|
Optional accessories
|
Eyepiece: 10/20 times; then objective lens: 5/10 times; ring light source, fiber light source group (ring / double tube)
|
||||
