Nikon optical collimator system --- optional accessories

  • Porduct feature
  • Technical Scope
    • Product Name
      Nikon optical collimator system --- optional accessories
    • Product Model

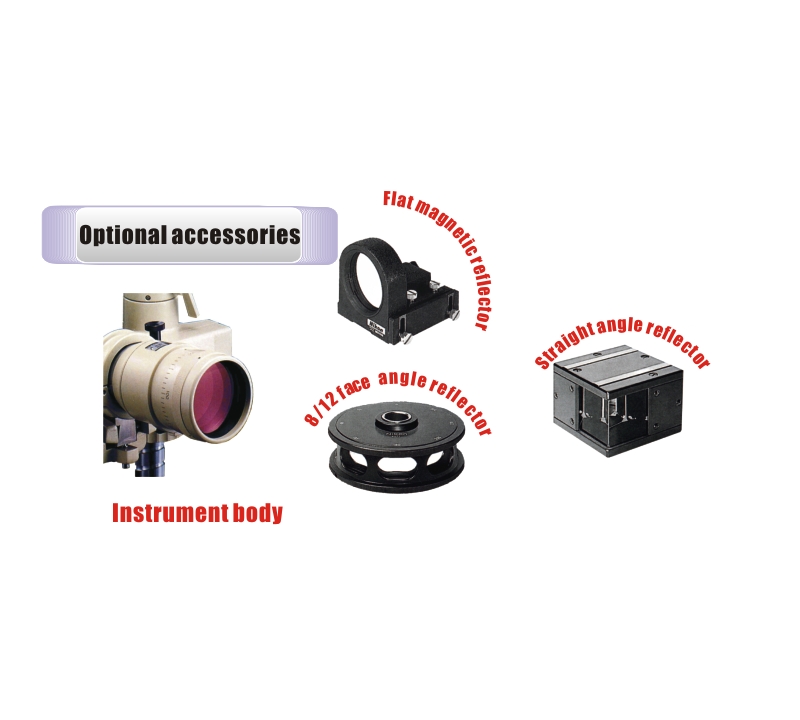

      Optional accessories
    • Characteristic

      Instrument features

       * Visual reading error elimination image processing.

       * OK / NG Qualified automatic processing judgment.

       * Win 95 Easy operation on the operating system.

       * TEXT The report format is used for the measurement

          data output.

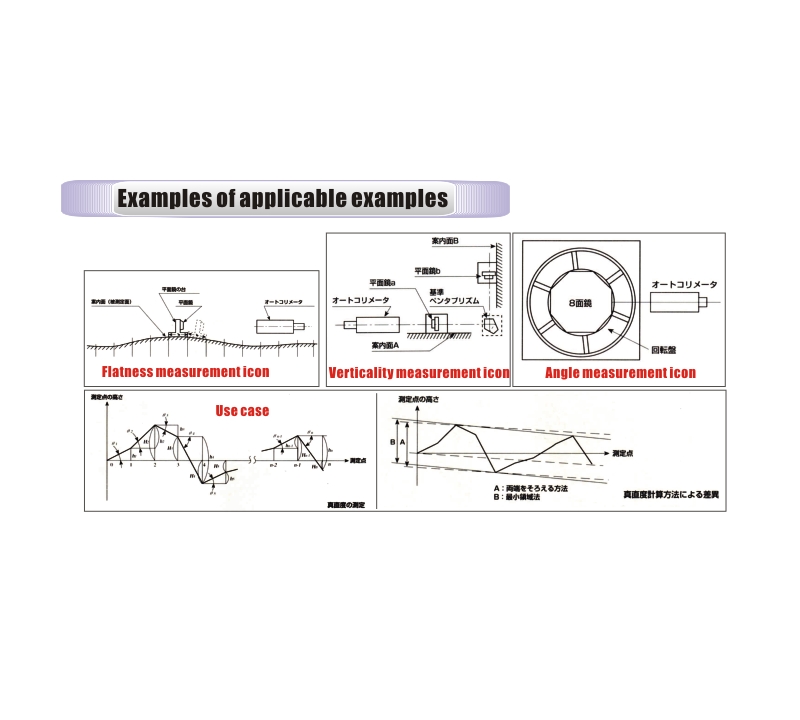

      Applicability

       * Adjustment of optical system (copy / OHP ... etc).

       * Optical part angle comparison, vertex angle measurement,

         parallelism determination, rotation axis amplitude

         measurement.

    • Accessories
      test1
    • Notations
      test2
  • Optical collimator
    with 6B 、6D
    Minimum read value
    0.1 second
    Measuring range
    X/Y : 20 Minute (2/3"CCD)
    Function
    Test screen, qualified to determine
    Numerical record
