High resolution type --- digital module camera
☆unique design : Digital modules provide true and stable images,
high quality color performance.
☆Intelligent typeOSD (Switch conversations) Selection, color
standard module and lock function.
☆High resolution performance : 520 Analysis of the level of
the article.
☆High sensitivity, low illumination (0.3Lux) Performance;
image 0.03 Lux。
☆Smart backlight adjustment, digital H & V aperture
compensation.
☆ 1/2" Highlight color CCD color camera system.
☆Resolution : 811(H) x 508(V) --- 41 Million pixels.
☆Signal output : BNC / YC ；C/CS Mount Mirror seat.
Synchronous output 3 signal; facilitates elastic connection.
☆power supply : DC12V Input; 3.5W power consumption.
☆Exterior ( W x H x D ) : 57 x 52 x 110 mm。

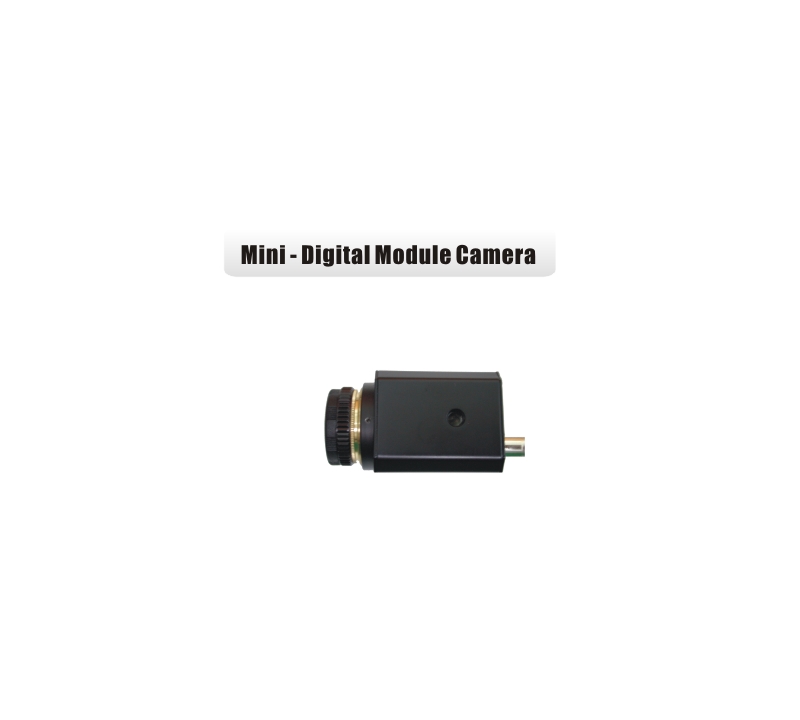

Mini - Digital Module Camera
☆unique design : Digital modules provide true and stable images,
high quality color performance.
☆ 1/2" Highlight color CCD Color camera system.
☆High resolution performance : 470 Analysis of the level of
the article.
☆High sensitivity, low illumination (0.4Lux) which performed；
5600 °k。
☆Smart backlight adjustment, digital H & V aperture
compensation.
☆Resolution: 811(H) x 508(V) --- 41 Million pixels.
☆Signal output : BNC； C/CS Mount Mirror seat.
☆Power supply: DC12V input; 150 mA Power consumption.
☆Exterior ( W x H x D ) : 38 x 38 x 73 mm。

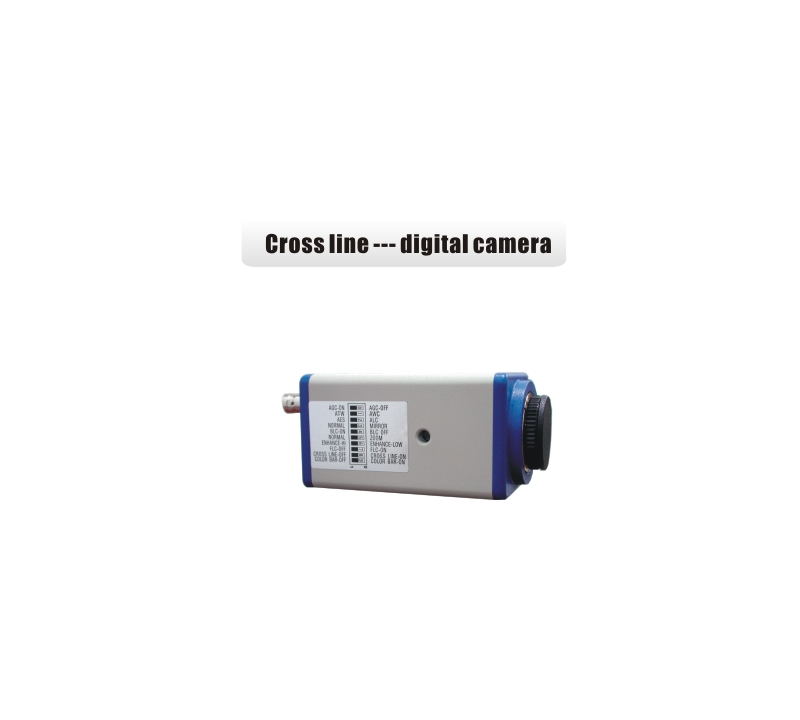

Cross line --- digital camera
☆unique design : Digital modules provide true and stable
images, high quality color performance.
☆Standard module "cross line" is generated and closed.
☆ 1/3" Highlight colorCCD Color camera system.
☆High resolution of the performance: 520 level analysis.
☆High sensitivity, low illumination (0.1Lux) performance;
5600 ° k。
☆Smart backlight adjustment, digital H & V aperture
compensation.
☆Resolution: 811 (H) x508 (V) --- 41 million pixels.
☆Signal output : BNC ；C/CS Mount Mirror seat.
☆power supply : DC12Venter；180 mA Power
consumption.
☆Exterior ( W x H x D ) : 38 x 38 x 73 mm。
Digital Camera Camera
◎unique design : Digital high resolution scanning
module provides true and stable images
, high quality color performance.
◎ntelligent external synchronization program control
dialogue, color standard module, lock function and
image capture function.
◎ USB 2.0 (480Mb/sec) High-speed video interface
transmission.
◎High intelligent anti-collision. Shock-proof design to
get the best image quality.
Digital Camera Camera
|
Models
|
NexShot2C-1.3 M
|
NexShot2C-2M
|
NexShot2C-3M
|
|
Sensor Type
|
Color CMOS Programmable Scanning
|
||
|
Image analysis
|
1280 x 1024
|
1600 x 1200
|
2048 x 1536
|
|
Photography specification
|
1 / 2 Inch
|
||
|
Noise ratio (S/N)
|
45 dB
|
44 dB
|
43 dB
|
|
Maximum data transfer
|
480 Mb / secretary
|
||
|
The largest image grid
|
30 fps
|
20 fps
|
12 fps
|
|
Computer interface
|
USB 2.0
|
||
|
Output the image grid ratio
|
10 bit / pixel
|
||
|
Camera adapter
|
C-mount
|
||
