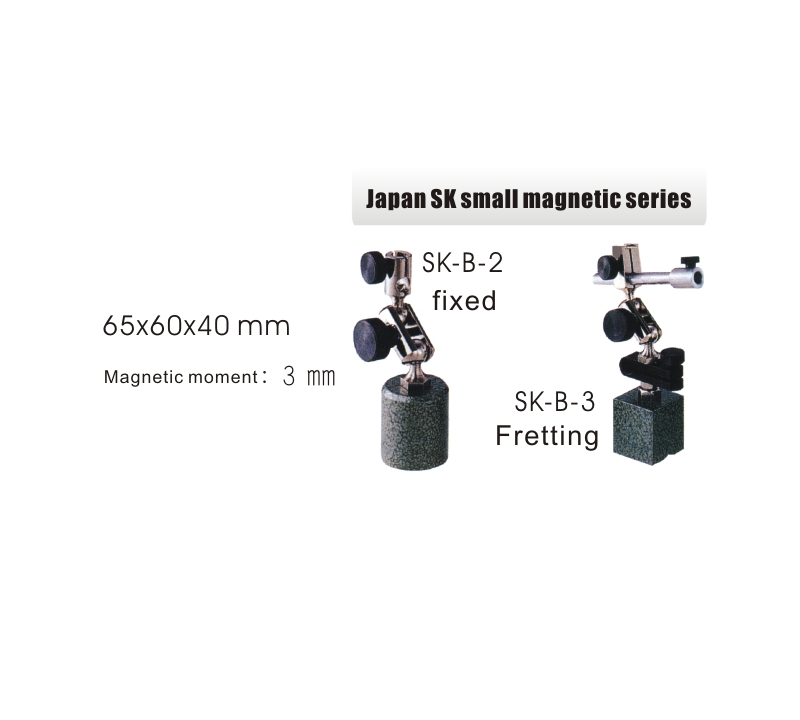

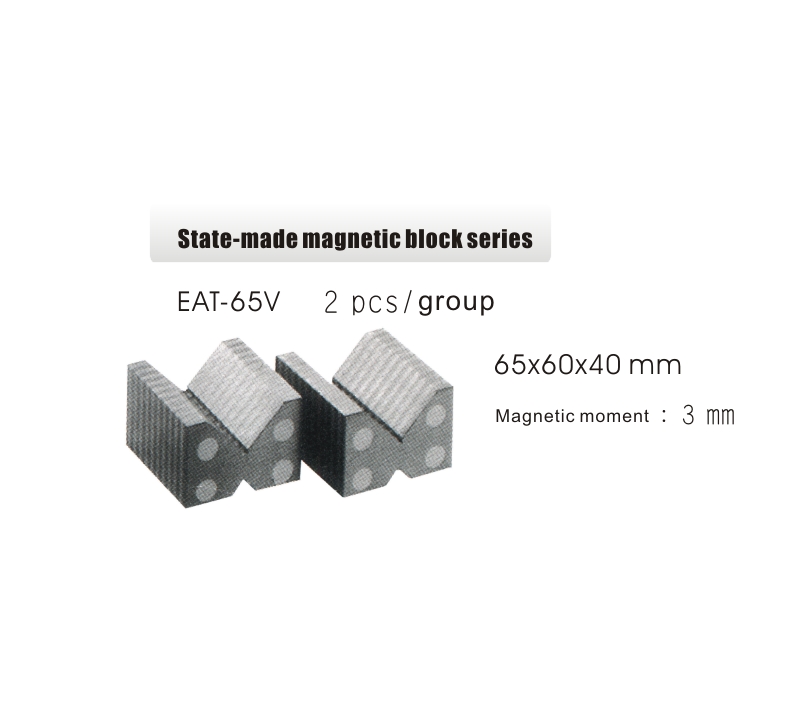

Optical accessories --- fixture articles - V-type magnetic seat series --- 2 pcs / group / national system magnetic block series / Japan SK small magnetic series

  • Porduct feature
  • Technical Scope
    • Product Name
      Optical accessories --- fixture articles - V-type magnetic seat series --- 2 pcs / group / national system magnetic block series / Japan SK small magnetic series
    • Product Model
      ECE-507
    • Characteristic

      No content

    • Accessories
      test1
    • Notations
      test2

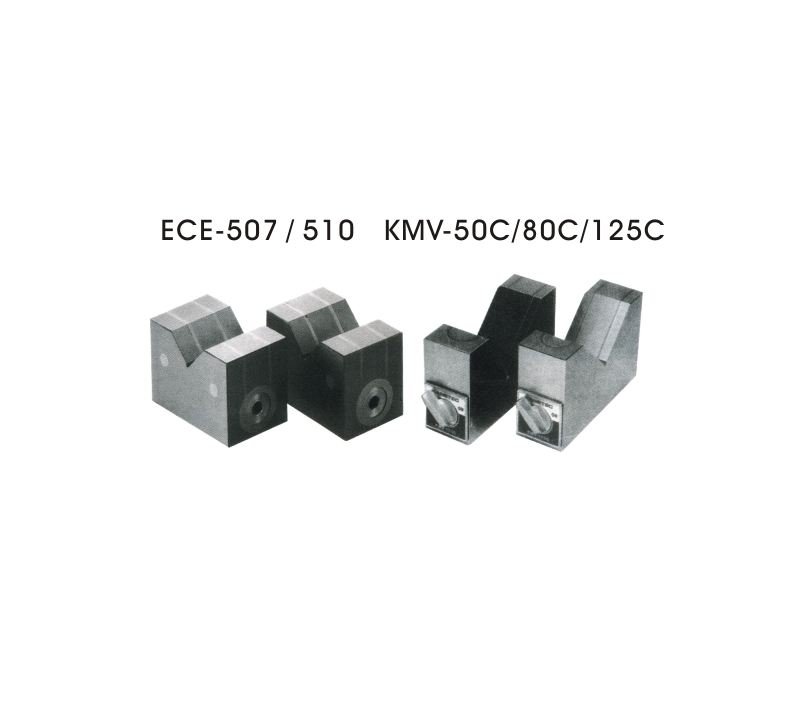

  • V-type magnetic seat series

    Type
    V surface magnetic force
    Diameter
    Standard sizes
    ECE-507
    15kg
    50mm
    40x70x50mm
    ECE-510
    20kg
    80mm
    80x100x80mm

    Type
    tandard sizes
    V groove width
    KMV-50B
    40x70x50mm
    36mm
    KMV-80B
    50x100x80mm
    60mm
    KMV-125B
    50x150x100mm
    90mm

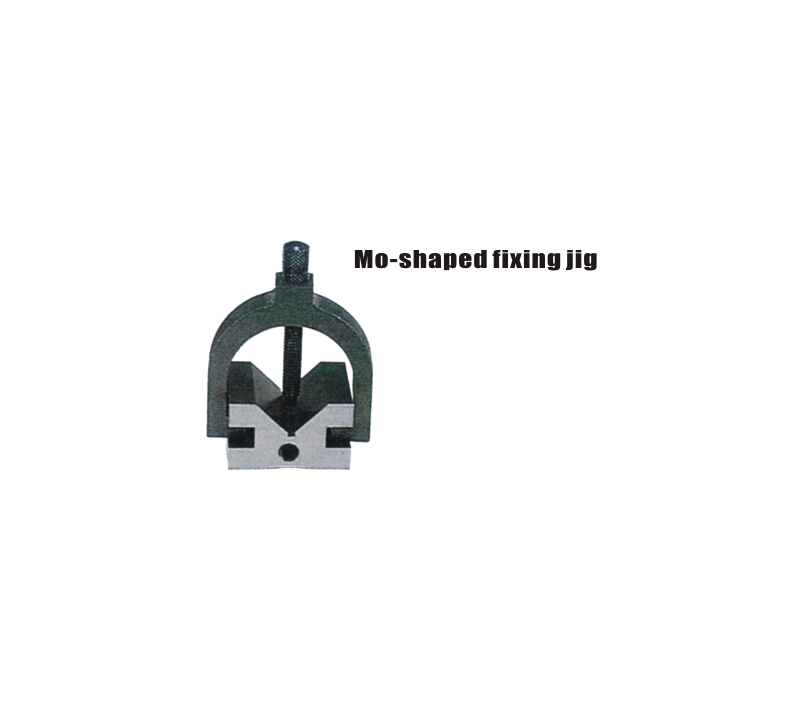

    Mo-shaped fixing jig

    Type
    Wide x high x deep
    V amplitude
    Accuracy
    Unit
    34-001
    40X30X50
    30
    0.005mm
    2
    34-003
    60X50X70
    38
    0.005mm
    2
