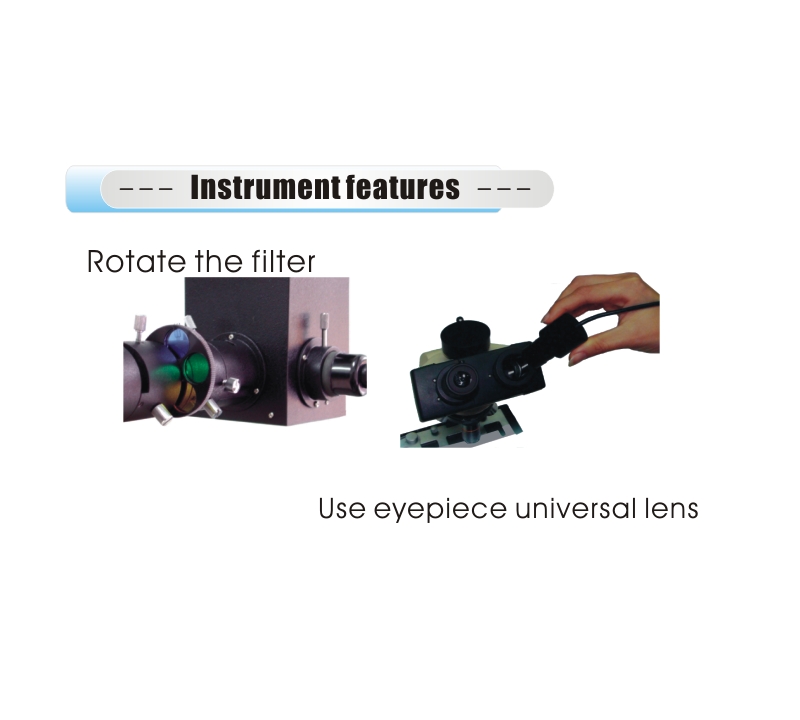

Instrument features:
economical, simple, easy to operate high-power (metallographic)
observation microscope.
Instrument applicability:
research and development, microstructure, optoelectronics,
electronics, precision industry,microscopic observation.
|
Type
|
Multiple
|
Mirror size
|
Vision
|
Remarks
|
|
Type
|
Multiple
|
The number of openings (N.A)
|
focal length (W.D)
|
|
Plane mirror
|
10 Times
|
25mm
|
16mm
|
standard
|
Plan Achromat
|
5 Times
|
0.12
|
18.3
|
|
|
20 Times
|
15.6mm
|
11mm
|
Optional
|
10 Times
|
0.25
|
8.9
|
|||
|
|
20 Times
|
0.40
|
8.7
|
||||||
|
25 Times
|
0.40
|
8.7
|
|||||||
|
40 Times
|
0.65
|
3.7
|
|||||||
|
50 Times
|
0.70
|
2.02
|
|||||||
|
60 Times
|
0.85
|
0.26
|
|||||||
|
80 Times
|
0.80
|
0.96
|
|||||||
