Design concept

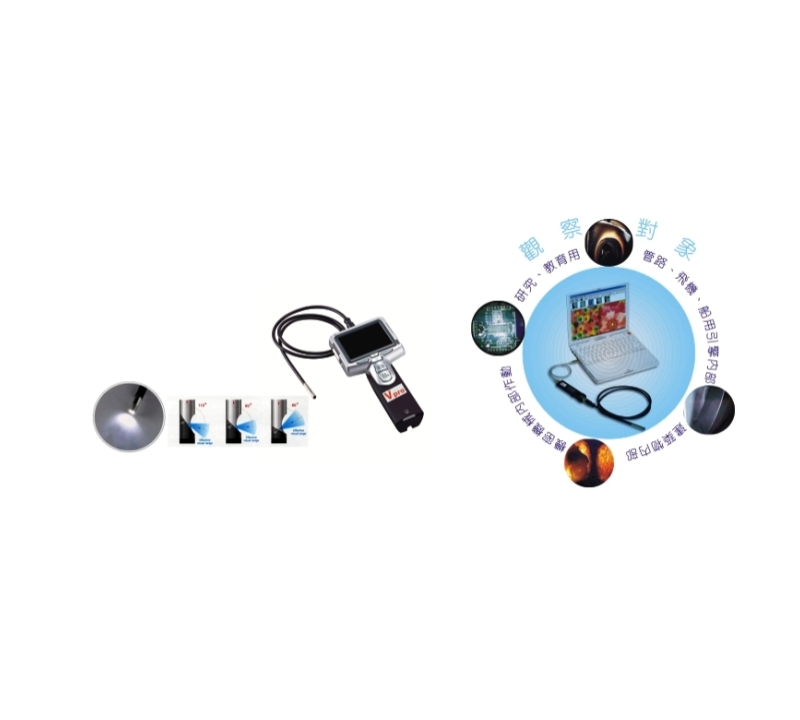

Portable optical lens and LED light source combination,
so that the image observation more convenient, clearer,
more bright for the hole, can not be a small place for
direct image capture and video to give full play to its
inspection function.
Technical specifications and main features
☆USB image input device, directly connected with the Eee
PC or laptop.
☆With camera, video, file storage, compare the screen and
other software functions.
☆Design Kit ψ3.9 mm & ψ5.5 mm & ψ8.0 mm Outside diameter
lens for observation use.
☆High resolution, bright color 300,000 CMOS color camera equipped
with clear and natural images.
☆IR68 Cable and lens, with dust, waterproof design.
☆Full range with 1000 mm long Rao-style tube, easy to extend any of
the narrow can not be observed.
☆Standard with software features: camera, video, video comparison with.
Instrument hardware specification
☆Observation angle: 67 degrees.
☆Working focal length: 2 ~ 7 mm.
☆LED auxiliary light source:
1>8 mm lens using 6 white LED bulbs.
2> 6 mm lens using 4 white LED bulbs.
☆Set of lens groups:
3.9 mm(Fisheye lens)、5.5 mm、8.0 mm、12 mm
☆Can be Rao tube optional:
1 meter (standard), 2/3/5/10/20/30 meters.
Instrument Image Technical Regulation
☆Camera resolution: 30 million (CMOS) design.
☆Image analysis: 640 x 480 ( JPEG / AVI )。
☆Use the connection interface: Mini USB 2.0.
☆Use power: USB 2.0 (5V).
☆Image format: NTSC specification.
☆S / N (noise) ratio: 42 db.
☆Image exposure mode: Auto.
☆Picture rate: 20 frames per second.
☆Use the software interface: Win compatible operating system
Design concept
Portable optical lens and LED light source combination,
so that the image observation more convenient, clearer,
more bright for the hole, can not be a small place for
direct image capture and video to give full play to its
inspection function.
Technical specifications and main features
☆A multi-purpose, multi-purpose, wide applicability,
good expansion All-in-one design.
☆3.5-inch TFT LCD screen mounted, can be dynamic
video, static camera storage, easy to operate.
☆The overall package design ψ5.5 mm OD lens is
observed for use.
☆High resolution, bright color 300,000 CMOS color
camera equipped with clear and natural images.
☆System equipped with 2GB SD memory card, you can
always browse the storage of the video, take pictures.
☆IP 58 Cable and lens with dust, waterproof design.
☆High capacity lithium battery, can be used continuously for 2 hours.
☆4 ultra-white LED bulbs, brightness can be adjusted,
narrow and dark corners are also clearly as test for observation.
Applications
☆Fire : Search and rescue.
☆Environmental protection : Evidence.
☆Police use : Search, attack.
☆Repair : Decoration, water and
electricity pipelines, air conditioning ,,,.
☆Research, observation: ecology, animal
and plant ,,,.
☆Transport maintenance : Steam / locomotive,
aircraft, ship ,,,.
☆Mechanical improvement: mechanical
internal observation, record.
☆Mechanical maintenance: lathes,
excavators, large machinery ,,,.
☆Storage capacity: 2 GB / SD card
(approx. 25,000 photos)
Instrument Image Technical Specification
☆Storage capacity: 2 GB / SD card (approx. 25,000 photos)
☆Image resolution: 640 x 480 (JPEG / AVI).
☆Storage memory: 1 ~ 4 GB / SD card.
☆Operation menu: I-Con / language options.
☆Output interface: USB.
☆Display interface: RGB 16.7M color digital.
☆Battery: Use 3.7V / 1800mAh lithium battery.
Use at least 2 hours.
☆Image time: about 1 hour 10 minutes.
