Design concept
(Radial 0.02 + 6H / 10000 microns; axial 0.02 +6X / 10000 microns)
, so that the system can measure thetrue roundness / cylindrical
degree, but also to measure the flatness and other parameters,
So suitable for a variety of applications. RA-1600 also inherited
the D.A.T. (digital adjustment Taiwan) device, so that the workpiece
aligning, level adjustment more convenient and fast. The operator
simply needs to operate the digital differential head to achieve the
adjustment value displayed on the screen.

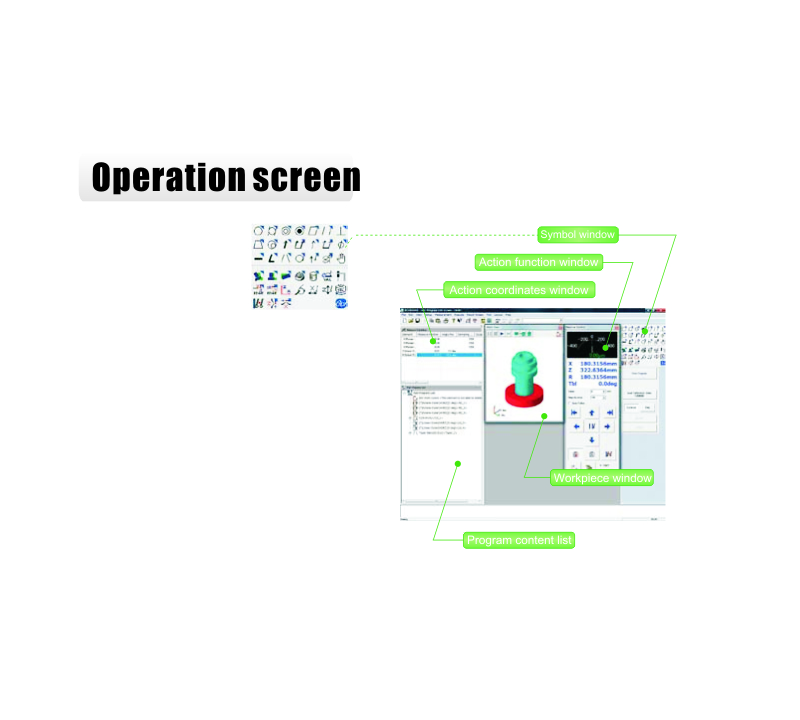

Instrument features
☆Continuous Outer Diameter / Diameter Measurement Function:
Continuous internal / external diameter measurement can be
achieved without changing the detector position.
☆Local circumference measurement function: A part of the
circumference can be measured even if the workpiece can not
be measured as a result of some obstruction (partially protruding).
☆Spiral mode measurement function: the table rotation and linear
motion merger, can be cylindrical,coaxial and other data as a
collection of continuous data.
☆X-axis tracking measurement: through the X-axis built-in linear
ruler can be measured side of the workpiece, one side of the
measurement. This type of measurement is useful in situations
where the X axis must be moved to keep fit to the surface shape
of the workpiece beyond the displacement formed by the probe
measurement range.
☆Spiral measurement / analysis: Rotary mode measurement of the
table rotation and linear motion can be combined, cylindrical,
coaxial and other data can be used as a collection of continuous data.
☆The detection device holder can reach a sufficient height in the
Z-axis direction, and the height can be lowered and positioned
for measurement.
|
Models
|
RA-1600
|
||
|
Turntable
|
Rotation accuracy
|
Radial
|
(0.02+6H/10000)μm H: Height above turntable detection (mm)JIS B7451-1997
|
|
Axial
|
(0.02+6X/10000)μm X: Distance to turntable shaft (mm)
|
||
|
Swing speed
|
4, 6, 10 rpm
|
||
|
Worktable effective diameter
|
Ø150 mm
|
||
|
Center / level adjustment
|
D.A.T.
|
||
|
Center adjustment range
|
±3 mm
|
||
|
Level of adjustment
|
±1°
|
||
|
The maximum load of the table
|
25 kg
|
||
|
Maximum measured diameter
|
Ø 280 mm
|
||
|
Maximum workpiece diameter
|
Ø 560 mm
|
||
|
Vertical drive
(ZShaft column)
|
Drive straightness
|
Narrow range
|
0.20 μm / 100 mm
|
|
Wide range
|
0.30 μm / 300 mm
|
||
|
Turntable parallelism
|
1.5 μm / 300 mm
|
||
|
Moving speed
|
Max. 15 mm/s (Measurement speed: 0.5, 1, 2, 5 mm/s)
|
||
|
Move up and down
|
300mm
|
||
|
Maximum detection height (ID / OD)
|
300 mm
|
||
|
Maximum detection depth
|
exceedØ32
|
91 mm (Use standard stylus)
|
|
|
exceedØ7
|
50 mm (Use standard stylus)
|
||
|
Radial drive (XAxis arm)
|
Drive straightness
|
2.7 μm / 140 mm(λc2.5)
|
|
|
Turntable vertical
|
1.6 μm / 140 mm
|
||
|
The amount of movement
|
165mm(Can be moved from the table axis to -25mm)
|
||
|
Moving speed
|
Max. 8 mm/s (Measurement speed: 0.5, 1, 2, 5 mm/s)
|
||
|
Detector
|
Determination of legislation
|
10 ~ 50 mN (5 段)
|
|
|
Measurement range
|
standard
|
±400 μm / ±4 μm / ±4 μm
|
|
|
track
|
±5 mm
|
||
|
Tip shape.Material
|
Ø 1.6 mm Super hard ball
|
||
|
other N/OUT
|
Single-key conversion device, stylus angle mark (±45°), Z Axis collision detection function
|
||
|
other
|
Voltage
|
100 V ~ 240 V
|
|
|
Electricity consumption
|
80 W(Not PC, Printer class)
|
||
|
Pressure
|
0.39 MPa
|
||
|
Air consumption
|
22 L/min (Standard state)
|
||
|
Host net weight
|
170 kg
|
||
