LED surface impedance meter (SRM-110)
Equipment specification :
☆Measuring range : 10 ~ 10
☆Equipment accuracy : ± 10 %
☆Operating temperature : 5 ~ 49 ℃
☆Device appearance :130 x 70 x 25 mm
☆power supply : 9V (Pp3) battery

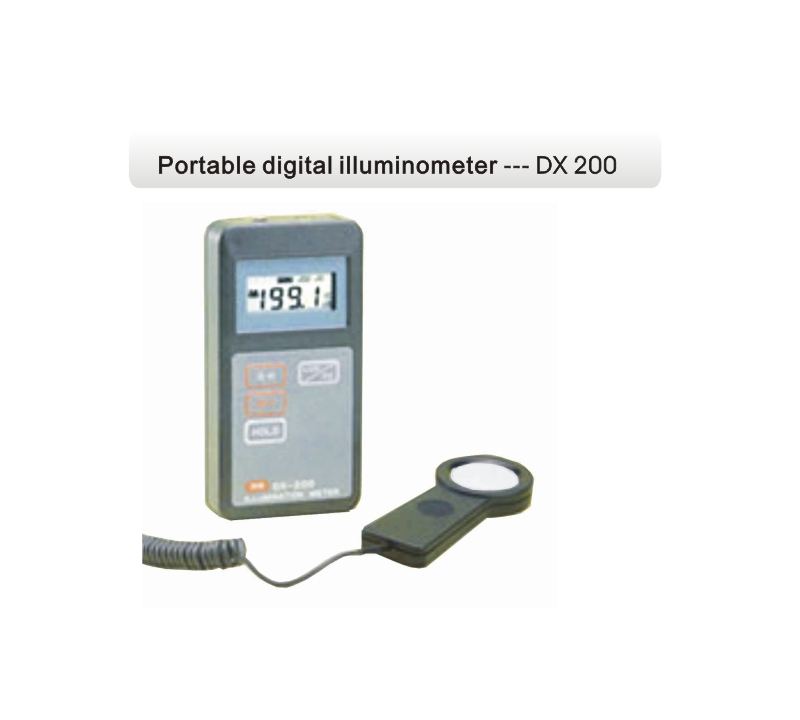

Portable digital illuminometer --- DX 200
Instrument features :
☆The automatic measurement range is closed
☆Automatic zero adjustment
☆LUX / FC unit switch
☆Independent HOLD button function
☆Silicon crystal photoelectric sensor
☆High precision measurement and long life
☆Waterproof panel design
☆Multi-function digital display
☆Weak automatic warning
Use : 一Used to test the strength of the work space lighting in
order to avoid lack of light caused by myopia; lighting
equipment. Lighting factory testing equipment. Products.
Green ... and so on, indispensable detection equipment!
Specification : 1) 0 ~ 200000 LUX (1m/m : Lux)
0~20000 FC (Foot-Candle --- 1m/ft
: Candle / feet)
2) Resolution: 0~200 LUX (0.1 LUX) ;
200 LUX 以上(1 LUX) 0~20 FC (0.01FC) ;
20 ~ 200 FC (0.1FC) ; 200 FC 以上 (1FC)
3) Automatically switch the reading unit
LUX and FC (blown candle)
4) Accuracy: ± 1 reading ± 2% (CNS 5119 A Grade)
5) Reaction time: 0.3 second / High -
precision silicon sensor head
6) Disk type display : 150 x 78 x 27 mm
7) Controller : 115 x 50 x 15 mm
8) weight: 225 g
9) power supply: 9V006P battery
