Made in Japan TECLOCK thickness gauge

  • Porduct feature
  • Technical Scope
    • Product Name
      Made in Japan TECLOCK thickness gauge
    • Product Model
      SM-114
    • Characteristic
      model
      Measuring range
      Deep throat
      Measure the pressure
      Upper stylus style
      Under the stylus style
      weight
      SM-114
      10 / 0.01 mm
      20mm
      2.5 N(250gf)
      ψ10 flat
      ψ10 flat
      270g
      SM-114 LS
      ψ3.2 ball (1/8")
      ψ10 flat
      SM-114 LW
      ψ3.2 ball (1/8")
      ψ3.2 ball (1/8")




    • Accessories
      test1
    • Notations
      test2
  • model
    Minimum reading (mm)
    Measuring range (mm)
    Probe throat deep
    Probe pressure
    Stylus style

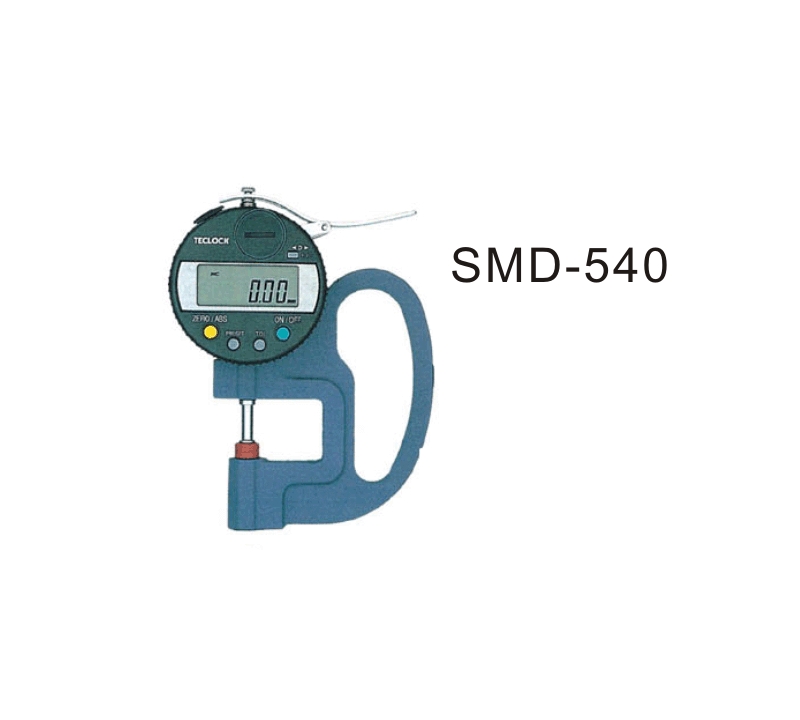

    SMD-540
    0.01
    12
    30
    1.0(100)
    ψ10 flat

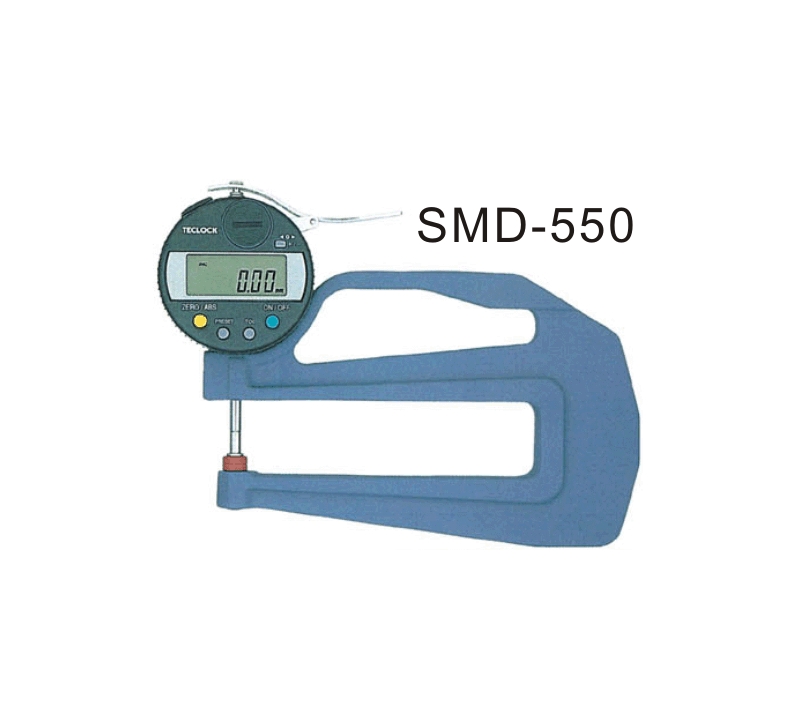

    SMD-550
    0.01
    12
    120
    1.0(100)
    SMD-565
    0.001
    15(12)
    30
    1.5(150)
