☆☆☆Instrument features ☆☆☆
Use Swiss SYLVAC
Patented electronic probe P25 (travel 25mm)

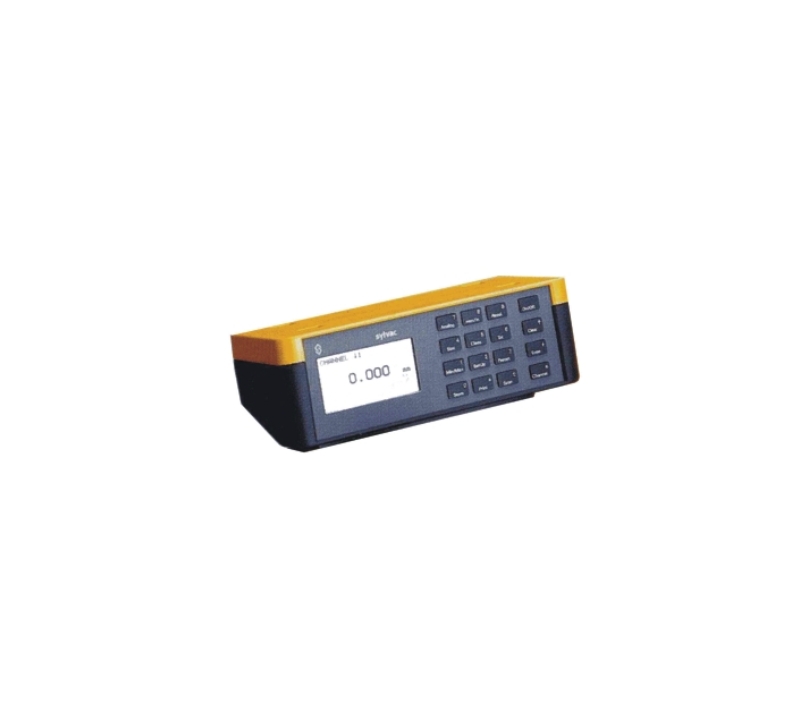

With SYLVAC D100S display or D80 economical display,
can achieve the following specifications, functions.

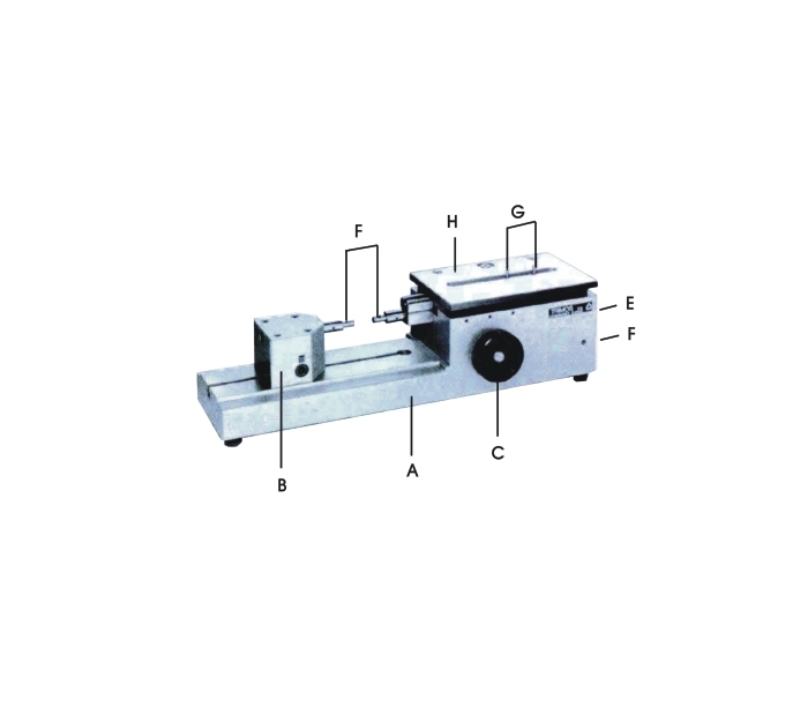

Structural description
A. The single structure contains the probe guide track
B. Movable fixed tailstock with drilling fixture
C. Mandrel move hand wheel
D. Pressure adjustment
E. Electronic probe or sub-table fixed hole
F. Replaceable outside diameter drilling group,
the standard for the TELS50
G. Replaceable diameter drilling group, the
standard for the TELS10
H. Adjustable up and down hard chrome
grinding table
|
ID measurement
|
6 ~100 mm (Depending on the attachment )
|
|
Outside diameter measurement
|
0 ~ 100 mm
|
|
With Sylvac P25 electronic probe when the absolute travel 25 mm
|
|
|
Outside diameter measurement range can be achieved by adjusting the tailstock B
|
|
|
Outside diameter measurement range can be achieved by adjusting the drill G position
|
|
|
Accuracy
|
1.5 um / 25mm (Maximum allowable accuracy)
|
|
Repeat accuracy
|
0.1 um / 0.00004"
|
|
Resolving power
|
0.1 ~ 0.0001mm / 0.001"~0.00001"
|
|
Measuring pressure
Weight
|
3 ~ 8 N (300 ~ 800 gf) Adjustable15 Kg
|
|
Unit
|
Public / imperial system
|
|
Show
|
Digital, electronic, pointer
|
|
Tolerance
|
Enter the standard value, upper and lower limits
|
|
Level
|
2 ~ 6 level
|
|
default value
|
enter
|
|
Determination of polar
|
＋ / － direction
|
|
Probe selection
|
Set selection
|
|
Lock function
|
Measured value, key, unit
|
|
External link
|
Pedal switch, computer
|
|
Print function
|
Numerical, statistical processing (SPC)
|
