Device characteristics : One molding, lightweight,
do not take up space, no light,
low-light optics.
applicability: Work site, work machine, equipment,
machine, large mold, object observation
Image system：NTSC
Image pickup element：1/4 - inch CCD Image pickup element
Effective pixels：542(H) x 496(V)
Scanning system：525 lines, 60 Figure field / second
Minimum illumination：1 Lux F1.2 5600°K

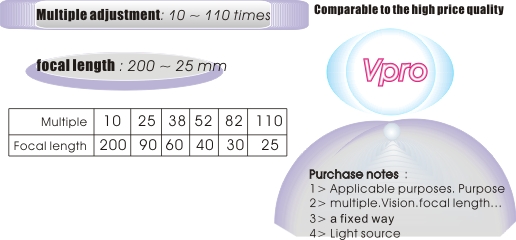

gain：10X ~ 110X , 11Times
Resolution：380 TV Line / 470 TV Line (Enhanced)
Noise ratio：52 dB (MIN) / 60 dB(TYP) (AGC OFF)
White Balance: Auto High Speed White Balance (Zero Scroll)
Operating temperature：-20 ℃~ 50 ℃
Operating humidity：85 % RH
Lens：25 mm
power supply：DC12V ; ± 10% ; 65mA
Size：38(Φ) x 110(H) mm
