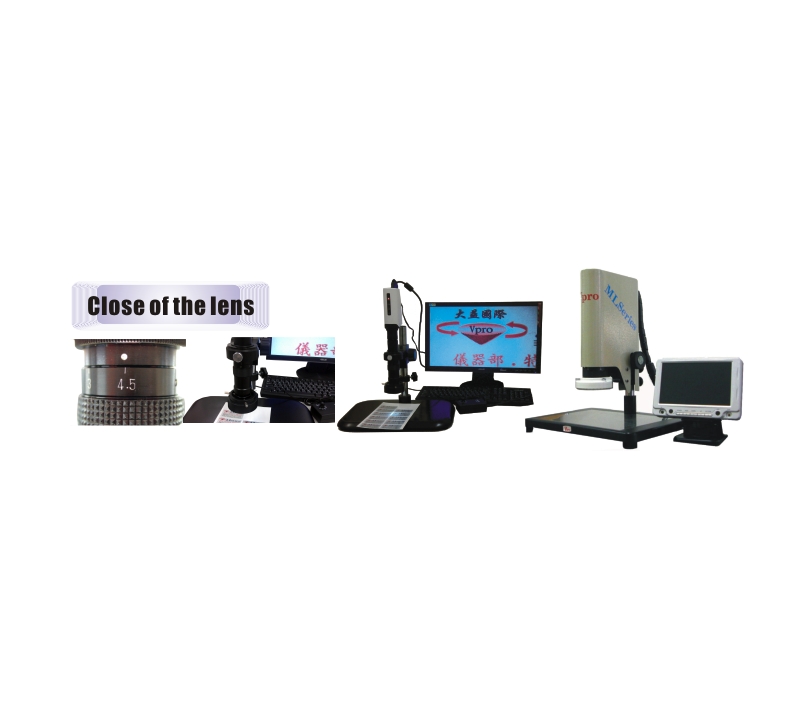

VPC Fieldless Lens Optical System (DL Series)

  • Porduct feature
  • Technical Scope
    • Product Name
      VPC Fieldless Lens Optical System (DL Series)
    • Product Model
      ML 0745
    • Characteristic

      Optical design  Fixed lattice, confocal, total center design,

                                 large field of view, high quality optical system.

      Applicability  Any space, fast visual inspection and measurement,

                             wide applicability.

      - Work site, quality control, research and development,

         equipment machine (PCB、SMT、AOI)

      - Electronic industry chip and ball inspection, wafer stylus

         , flaws, alignment check

      Optional accessories

      1> Optical tube : 0.5 (*) / 0.35 / 1.0 / 1.5 / 2.0 Times

      2> Auxiliary lens: 0.5 / 1.5 / 2.0 Times

      3> Focal length adjustment mechanism and base system

      4> Camera (VGA, analog, USB). Monitor

      5> Working platform : 70 x 50 mm / 30 x 30 mm / 150 x 150 mm

      6> Light source system : LED(D42) / LED(69T) / 21150BF / 21150RF



    • Accessories
      test1
    • Notations
      test2
  • Optical multiple
    0.7
    1.0
    1.5
    2.0
    3.0
    4.0
    4.5
    Remarks
    Image multiple
    14
    20
    30
    40
    60
    80
    90
    1/2" CCD
    Image multiple
    18
    25
    38
    50
    75
    100
    112
    1/3" CCD
    Vision (mm)
    17.6
    12.2
    8.2
    6.2
    4.0
    3.0
    2.2
    1/2" CCD
    Vision (mm)
    12.6
    8.4
    7.0
    5.6
    2.8
    2.0
    1.8
    1/3" CCD
    focal length (mm)
    92 mm (Confocal)
    14" Monitoring system
