PC-DMIS NC GAGE
Designed for contactless probes for simple, fast and safe
applications, it can be mounted directly on a controller
system or an external PC. Graphical man-machine interface,
easy to use users easily, can easily complete the
synchronization of workpiece coordinates, coordinate
settings and measurement. Built the "tutorial" and in the
window shows all the measurement process.
PC-DMIS NC GAGE
There are two versions of the standard and advanced versions.
●Standard: Basic geometric measurements and
tutorial programming.

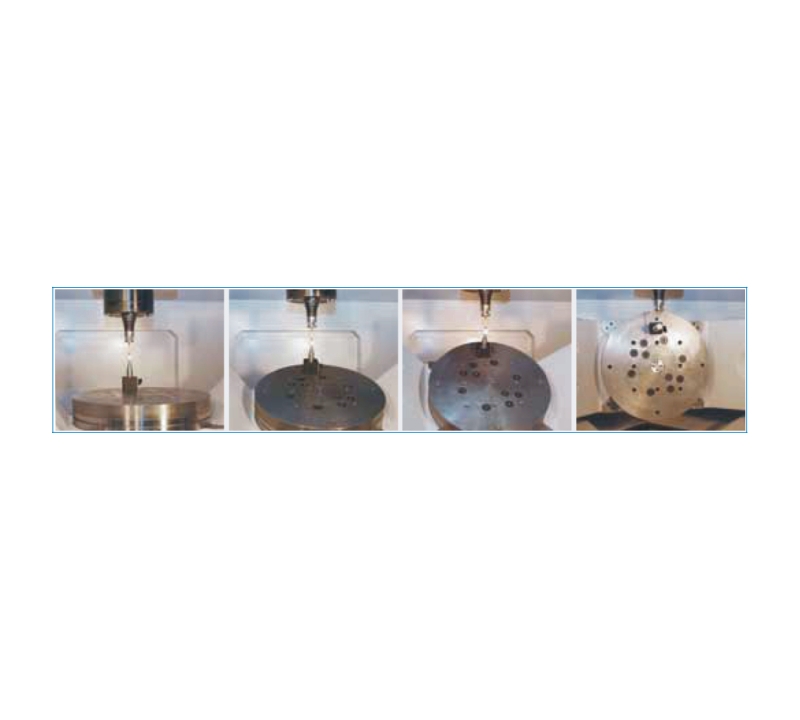

●Advanced: Added 5-axis CNC rotary table for dynamic
measurement and calibration.
●The measurement of the error of the turntable makes
it easy for the user to check the
geometric accuracy and data transfer of the CNC at any time.
Designed for the production of quantitative and development
of high-tech software for the production process to provide
processing assistance and measurement solutions.
powerful functions
●Support a variety of geometric elements of the measurement
and shape tolerance analysis：
(Point, line, circle, arc, flatness, roundness, vertical degree, etc.)
measurement function.
●Measure the results immediately feedback, and modify the
parameters according to the results.
(Coordinate system of the offset, knife length,
knife radius ... etc.)

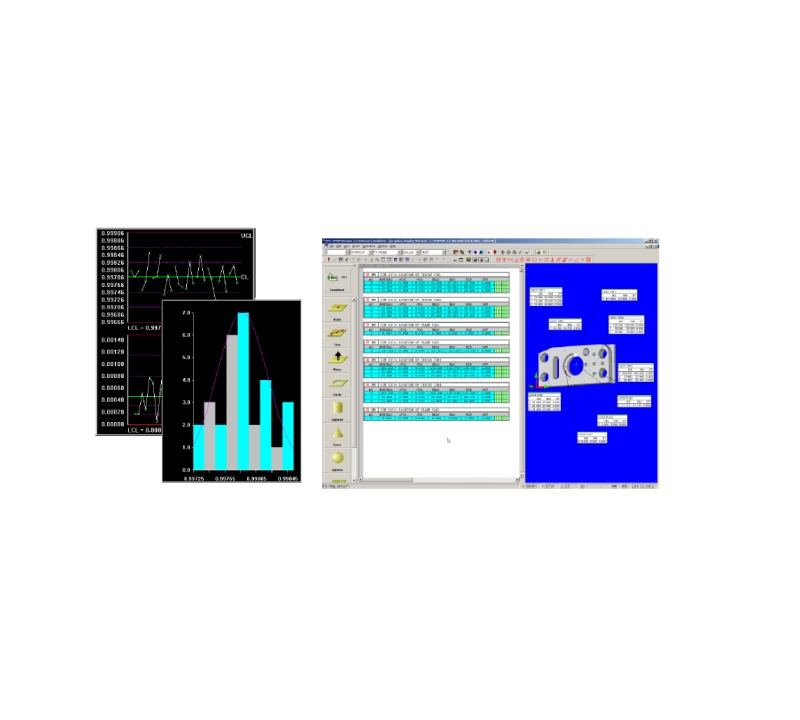

●Built-in statistical analysis of the function：In order to achieve
real-time monitoring of changes in the production process.

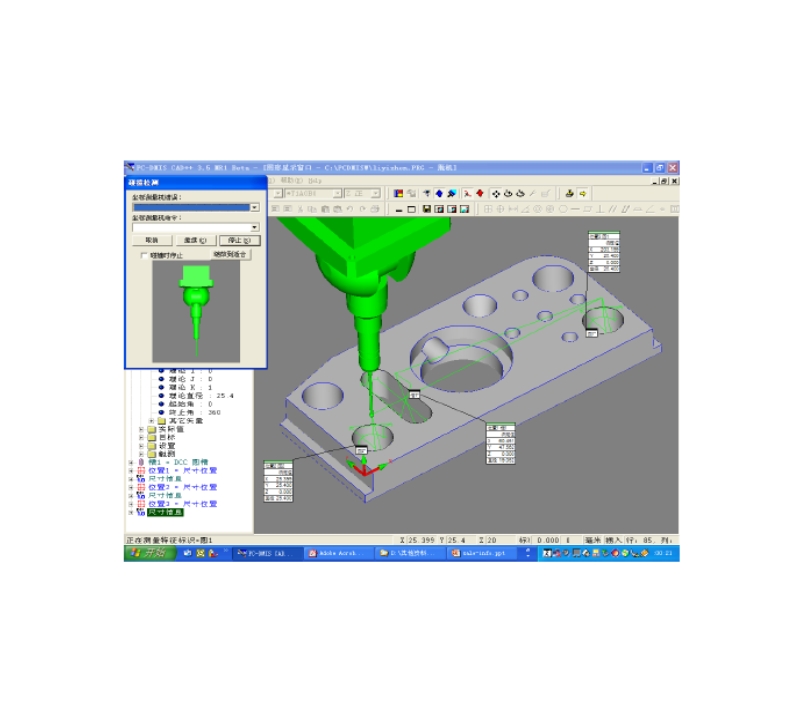

●Immediately simulate the measurement path：
Avoid bumps when measuring.
●Provide a variety of coordinate synchronization function：
Even if the complex workpiececan be quickly completed.
(3-2-1 method, best simulation, space 6 points ... etc.)

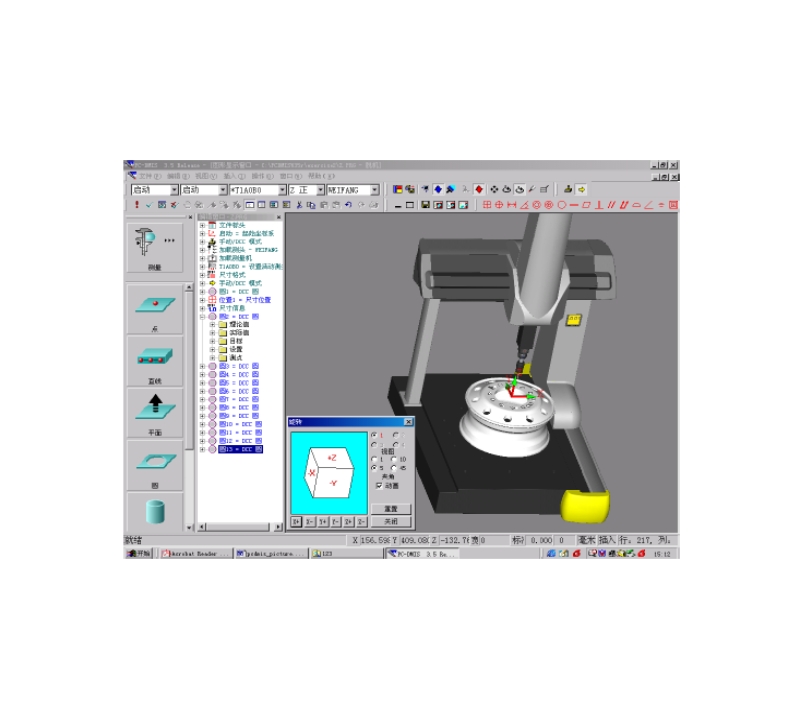

Auto CAD import, fast! Ruthless !!
●Support all the mainstream CAD file, improve the measurement
(Such as: iges, dxf, stl, step, vdafs ... and so on)
Real-time monitoring

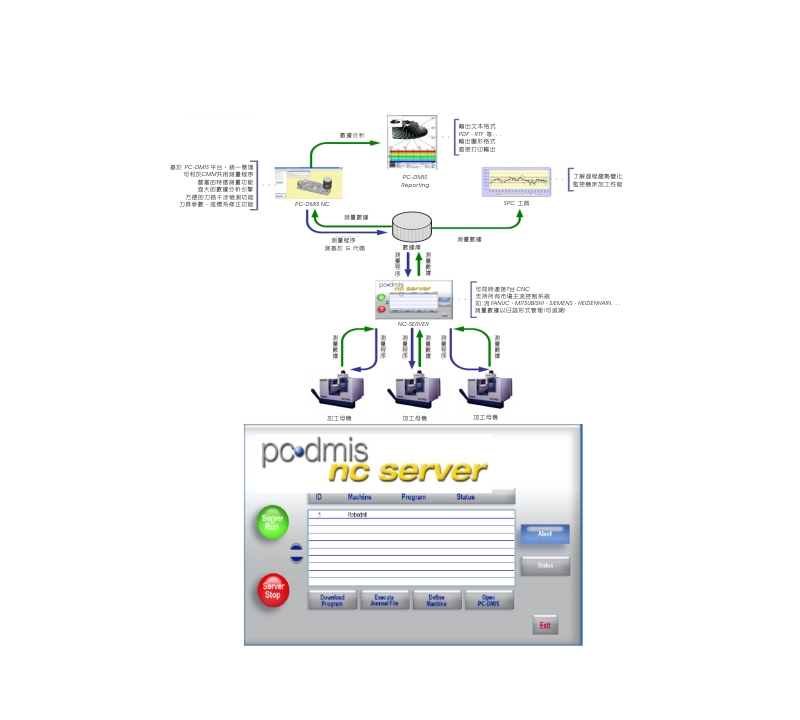

Provide one-to-many PC-DMIS NC SERVER, to achieve
the purpose of real-time
monitoring and management.
●Simultaneous monitoring of multiple machines (up to 7 units).
●The download and management of the measurement
program.
●Receive and analyze the uploaded measurement data.
●Support for process (data) traceability.

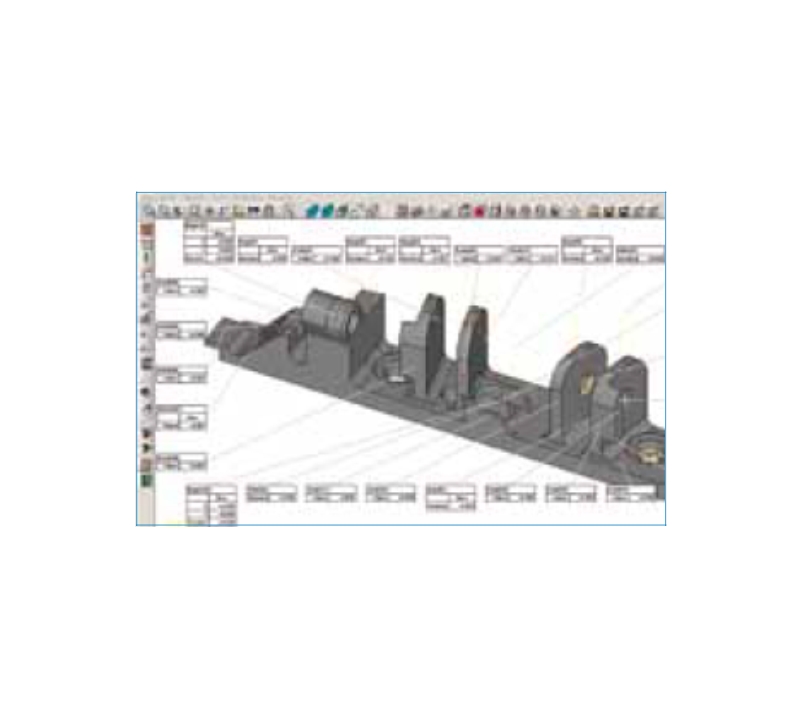

3D Form Inspect
Can be directly on the CNC to facilitate and quickly measure
and record the geometric characteristics of the workpiece
shape and location coordinates. Designed for onboard
measurements of free space surfaces and provides analysis and
determination of basic geometric elements for measurement
and shape tolerances.
● Support for various CAD files.
( iges、parasolid、catia、step、pro-e、ug、Solidworks...)
● Support all the mainstream CNC system on the market.
(HEIDENHAIN, MITSUBISHI,FANUC, SIEMENS ... etc.)

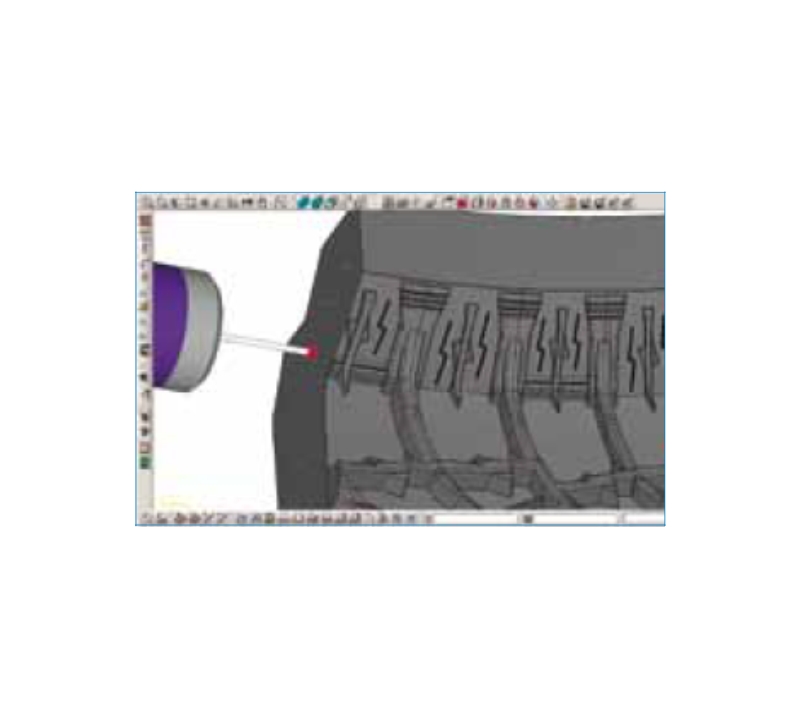

● Off-line simulation of measurement path and
measurement results.

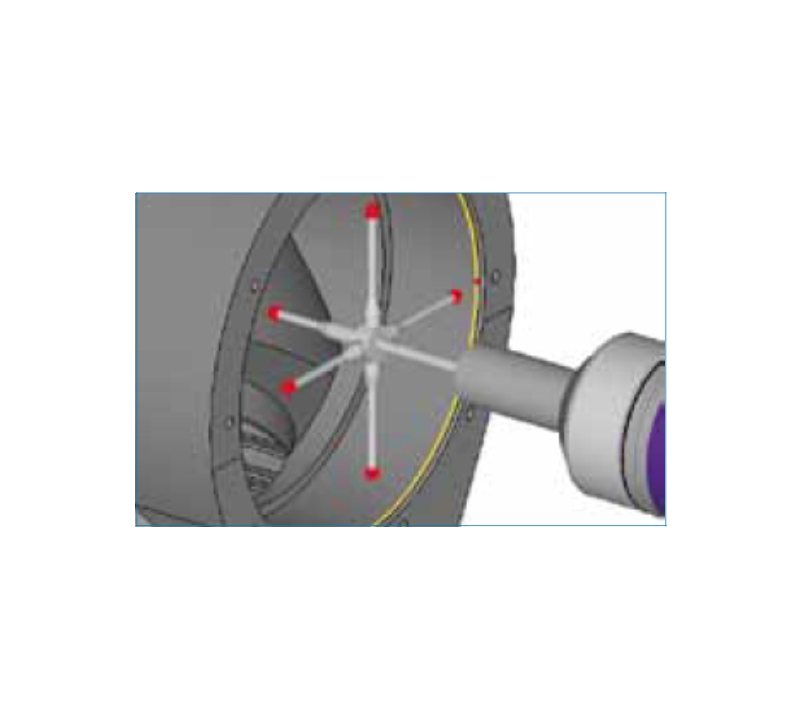

● Support the measurement of star stylus and 5-axis
CNC measurement.
● CAD import automatically generates measurement
programs and automatically uploads to
the CNC system.
