Cable type

Features

CNC equipment for milling, can be completed on the machine

tool size of high-precision measurement.

Sophisticated mechanical construction improves the reliability

of measuring the length of the knife, the tool diameter and the

degree of loss, and measures the unilateral and rotating tool of

the blade.

There are TS35.10, TS35.20, TS35.30 options.

● Adjustable height of the cutter (0 ~ 305mm), suitable for a

   variety of occasions.

● Large diameter on the cutter, increase the accuracy of

   the knife.

●Contact force adjustable, the smallest amount Φ0.1mm

  of the tool.

● Adopt the highest specification Ip68 seal protection.

● Can be installed protective rod, to avoid damage to the

   probe body.

● On the cutter before the factory have been checked,

   no need to adjust.

● The cutter head and base can be separated in order

    to ensure positioning.

● Equipped with LED indicator, showing the existing instrument

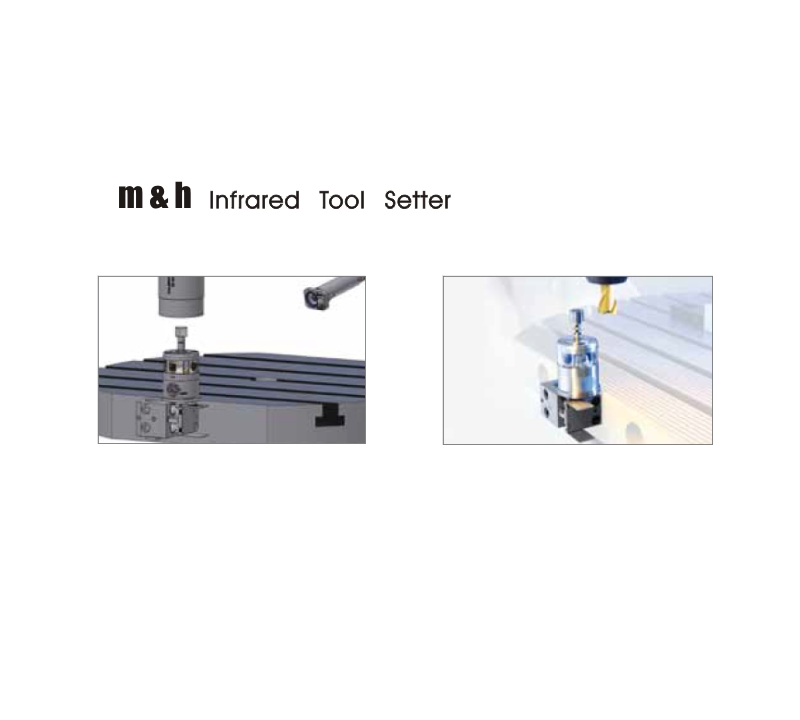

Infrared

Features

IRPT35.40 and IRPT35.70 are HDR infrared technology to do

signal transmission, can be installed in the CNC work area at

any location, to the length of the tool, radius and loss of the

machine on the measurement.

● Infrared transmission, no cable connection;

   installation more flexible.

● Applicable 5-axis processing machine and

   other large machine.

● It can share the same receiver with the

   m & h infrared probe.

● The smallest can be measured to Φ0.5mm tool.

● Can be installed horizontally or vertically.

● Ultra-small size, less interference in the

   processing area.

● Can be installed protective rod, to avoid

   damage to the probe body.

● Adopt the highest specification Ip68 seal protection.

● Battery life is long and no tools are required

   for replacement.

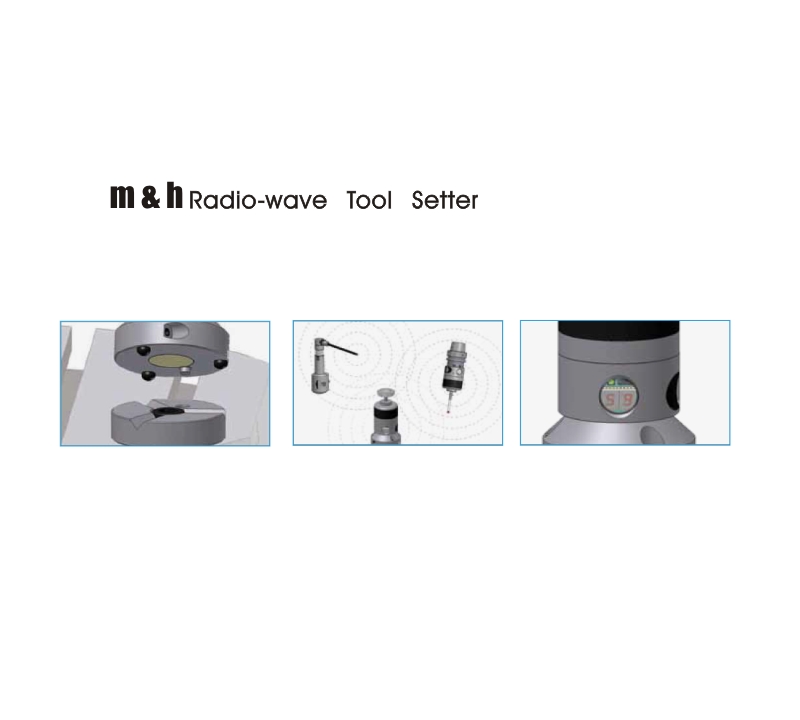

Radio

Features

RWT35.50 patented three-point positioning design,

so that RWT35.50 can be installed in any position

on the machine.

The radio design makes the RWT35.50 suitable for all

types of machines, especially large and very large CNC,

and can quickly and accurately measure the tool length,

tool radius and tool wear.

● Adjustable for the cutter (0 ~ 355mm), for a variety

  of occasions.

● Large diameter on the cutterhead.

● Removable design, do not take up machine space

   (can be used for multiple machines).

● High-precision three-point positioning technology,

   easy to complete the repeated installation and removal.

● And m & h probes share the same receiver.

● Contact force adjustable, the smallest amount Φ0.5mm

   of the tool.

● Encoded radio signals to avoid interference.

●Push-button design for easy visual and switching

  of channels.

● Can be installed protective rod, to avoid damage

   to the probe body.

● Adopt the highest specification Ip68 seal protection.

● The LED indicates the current status.

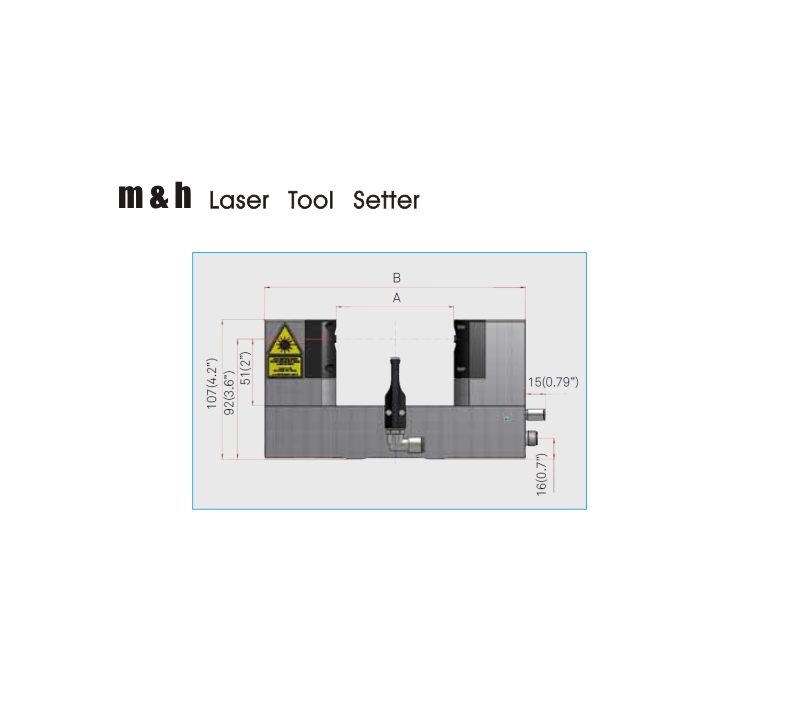

Laser

Features

LTS35.60 and LTS35.65 have high precision and high stability,

and can simulate the actual processing conditions to

achieve lower costs and improve the processing efficiency of

the automation environment.

LTS 35.60

    Minimum amount of Φ0.008mm of the tool

● Focusing laser.

●High pressure nozzles ensure tool cleaning.

● Integrated cleaning device.

● To overcome the harsh environment.

● Repeat the accuracy of up to 0.2um.

● Internal-specific electronic filter device.

● High pressure nozzles ensure tool cleaning.

● Can be installed horizontally or vertically.

● Various sizes are available and are available

   for all kinds of tools.

● Ultra-small size, small interference in the

   processing area.

● Measuring the tool diameter, length, wear,

   contour and machine spindle thermal expansion

   caused by changes.

● Adopt the highest specification Ip68 seal rating.

LTS 35.65

   Minimum amount of Φ0.030mm of the tool

● Internal integrated m & h cleaning nozzle.

● High pressure nozzle technology.
