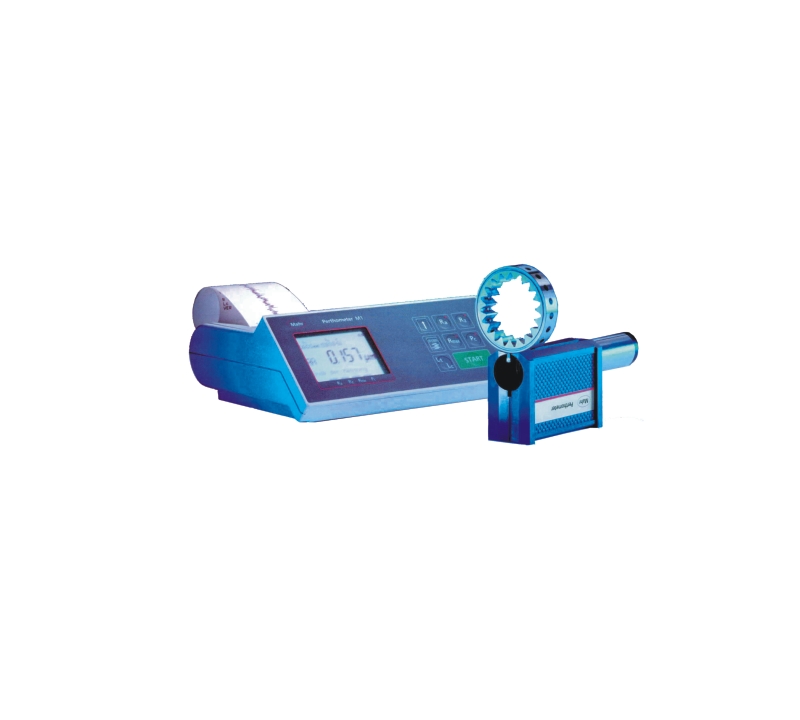

I : Surface roughness tester body

1. Measuring range: Vertical direction (Z) ---

    100 um；Horizontal direction (X) --- 17.5 mm

2. Clarify the value --- 0.001um (Ra)

3. parameter : Ra / Rz / Rmax / Pc (M1) ；

    The remaining models are as follows

4. Cut off value (Cut-Off) : 0.08 / 0.25 / 0.8 / 2.5 mm

5. Evaluation (calculation) Length: any (1 ~ 5 times)

6. Drive speed : 0.5 mm/s

7. Checker mode: differential mode (LVDT)

8. Needle: 90 degree diamond cone; radius : 2 um

9. Measuring force : 0.7 mN (7gf)

10. Measuring direction : Up / down / left / right can be

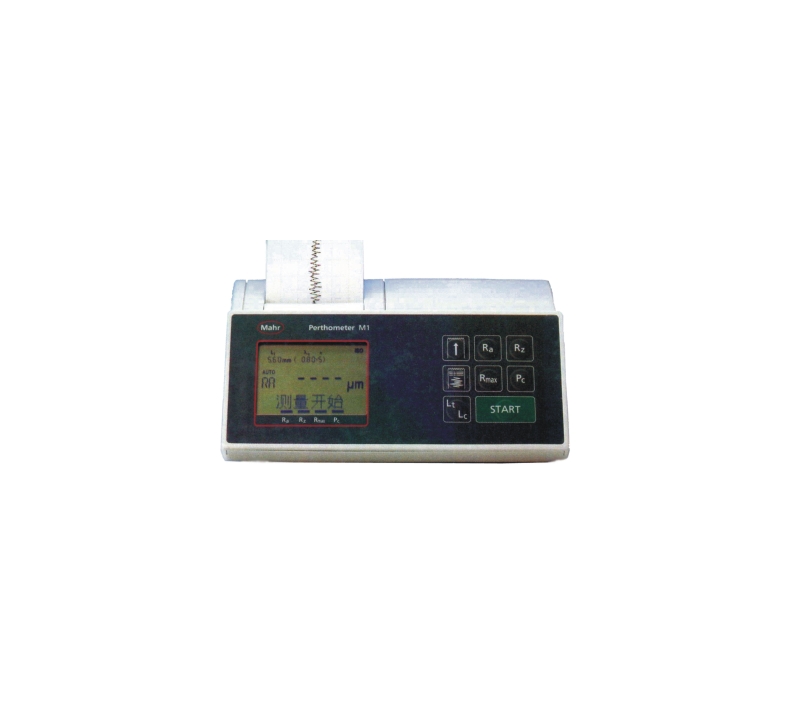

II: data computing printer (M1)

1. Operating language : Three Asian languages

    (including Simplified Chinese) and ten European

     and American languages; a total of thirteen

2. Large LCD display screen

3. Print type: thermal type

4. Electronic calibration program :

    Dynamic Instant Electronic Compensation

5. Record Curve: Thickness Curve

6. Record multiple: vertical (V) / horizontal (H);

                                automatic

7. Unit: male / English switc

8. Power supply: built-in rechargeable battery

9. Weight : 900 g

10. Exterior :190 x 170 x 75mm (W x D x H )

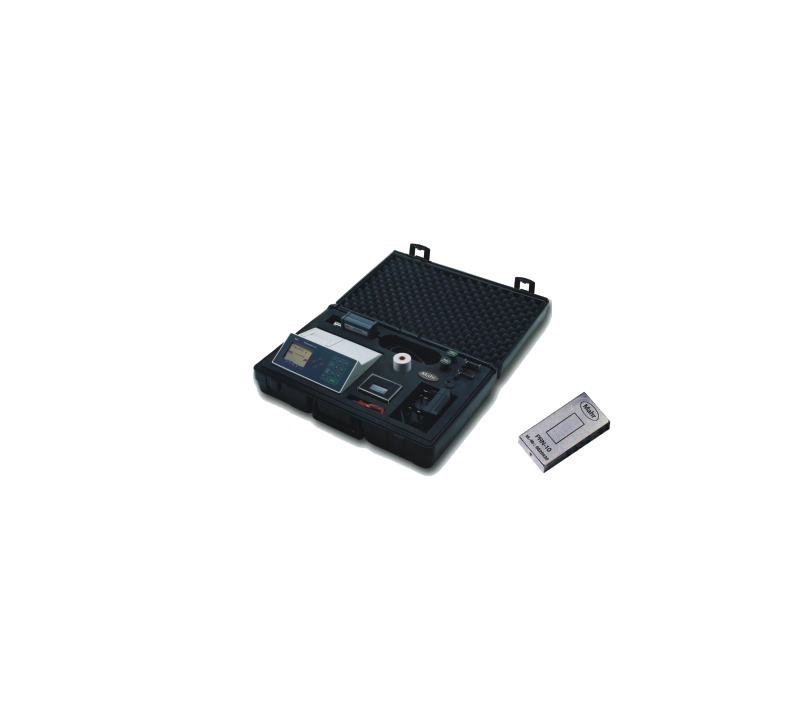

Standard accessories: M1 body, PFM drive,

standard stylus (X1), standard sheet, front / rear

adjustment frame, stylus protection device, charger,

printing paper (X1), manual (Chinese / English),

warranty card.
