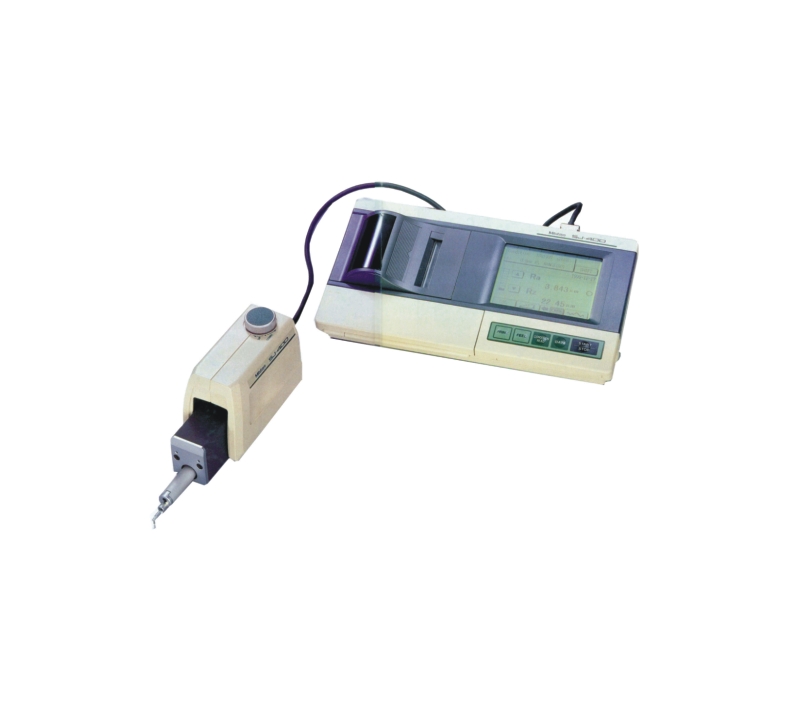

Instrument features
1. Wide range of applications, high precision;flat /
curved portable portable surface roughness meter.
◇Measuring range / clarity value : 800 um ~ 8 um /
0.000125 um ( 在 8 um Measuring range ).
2. 35 kinds of surface roughness measurement results
parameters, in line with international norms --
ISO、DIN、ANSI、JIS (1994/1982 ).
3. Cylindrical, circular surface measurement and
compensation function, easy to complete the
desired results.
4. For the polished surface, plane, step can be measured
and surface characteristics for the LCD screen to do
the analysis.
5. Expand the wide, in the future optional computer software
(SURFPAK-SJ) for analysis and report print storage.
6. Touch-screen operation panel and large LCD screen;
easy display of the determination process and the
results printed.
|
Models
|
SJ-401
|
SJ-402
|
|
|
Measurement method
|
Skidless (No slippery) / Skid (Pry)
|
||
|
Measuring range
|
(Z)
|
800 / 80 / 8 um (Public / imperial system)
|
|
|
(X)
|
25mm
|
50mm
|
|
|
True straightness
|
0.3um / 25mm
|
0.5um / 50mm
|
|
|
Determination of speed
|
0.05 / 0.1 / 1.0 mm/s
|
||
|
Tilt adjustment
|
± 1.5 degree
|
||
|
Height adjustment
|
10 mm / 0.39"
|
||
|
Evaluation curve
|
R 、 P 、 W ； DIN4776
|
||
|
Evaluate parameters
|
Ra、Ry、Rz、Rq、Pc、R3z、Rt、Rp、Rv、Rk、Rpk、Rvk
Sm、Mr1、Mr2、HSC、Sk、W、AW、A1、A2 ...
|
||
|
Standard specification
|
JIS (JIS B0601-1994-1982-2001) 、 DIN、ISO 、 ANSI
|
||
|
Sampling length
|
1 ~ 5 Times
|
||
|
Cut-Off
|
0.08 / 0.25 / 0.8 / 2.5 / 8 mm (Gaussian / phase compensation )
|
||
|
Graphic multiple
|
10 ~ 100K (vertical) ； 1 ~ 1K (Level)
|
||
|
Needle radius
|
5um diamond 90 Cone angle
|
2um diamond 60 Cone angle
|
|
|
Measuring force
|
4mN ( 40gf )
|
0.75mN ( 7.5gf )
|
|
|
Set selection
|
display / Print / curve / Determination of conditions / SPC Parameter selection
|
||
|
Print out the output
|
Thermal type --- 58 mm Paper width / 48 mmPrint range
|
||
|
Check the way
|
Electronic automatic calibration compensation (Ra value)
|
||
|
power supply
|
Ni-H 及 Power Supplier
|
||
|
Output interface
|
RS-232C
|
||
|
physical dimension
|
307 x 165 x 94 mm (Control department) ；155 x 36 x 47 mm (Drive unit)
|
||
|
Weight
|
Control Department --- 1.2Kg / drive unit --- (SJ-401:0.6Kg / SJ-402:0.64Kg)
|
||
|

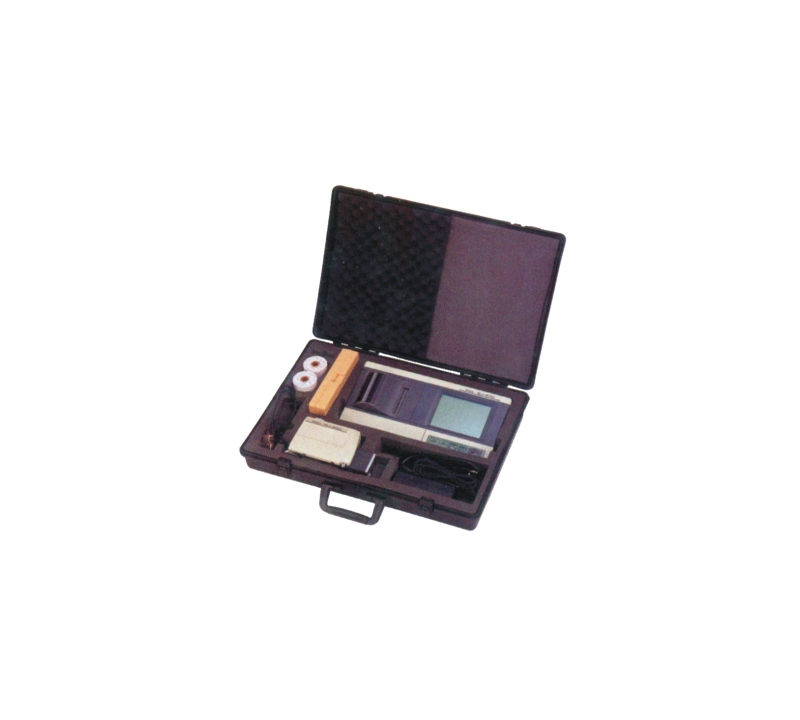

Standard equipment
|
Instrument body. Control section. Carrying case. Power supply. Printed paper. Touch pen.
Standard sheet. Anti-collision sponge. Nose cover. Operation manual. Warranty card. Service sticker ...
|
||
