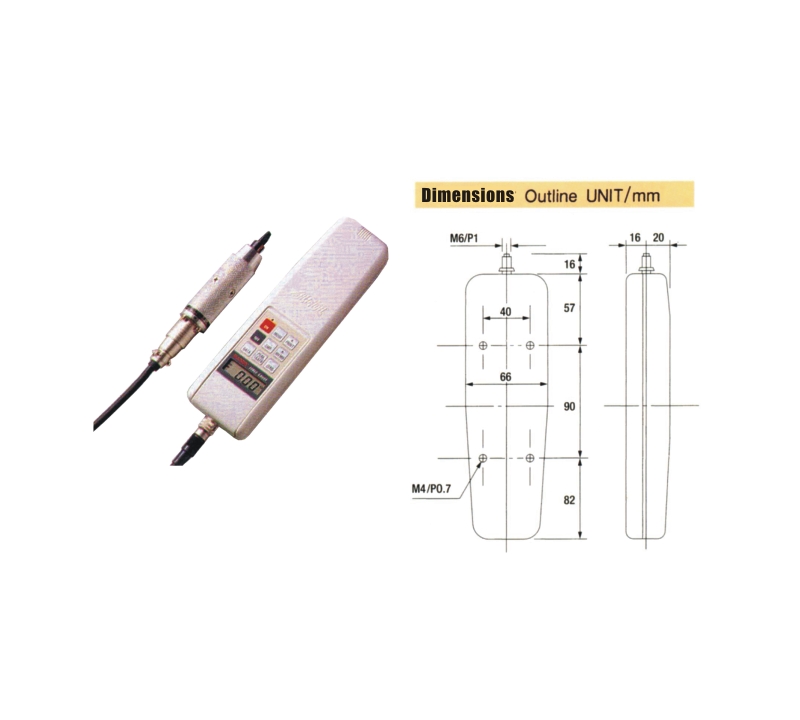

      Japanese electronic push-pull (HF)
    • Product Model
      HF-1
    • Characteristic

      Design concept

      ☆Except for simple load tests ; The other for a variety of

         product testing (ex: : Switch test, connector test, damage

         test and so on)，Can be used as a dedicated machine.

      ☆And the test results data through the CENTRONICS interface,

        you can directly all the statistics,analysis and processing,

        printed on the computer printer, without additional purchase of

        the  list machine, reduce costs and provide efficiency.

      Instrument features

      ☆High precision :  ± 0.2 %；Repeat accuracy；± 0.1% FS ；

         4 digit LCD liquid crystal display.

      ☆High resolution: 1/10000 --- 10  Kgf = 0.1 gf.

      ☆Three units to switch :  N / Kgf (gf) / lbf Unit of measurement.

      ☆The area Newton (N) value is set : According to different

          regions, there will be different gravity;to eliminate the error.

      ☆Statistical processing, check the format of the print :

         For standard deviation, engineering index,table output.

      ☆Compare function : Set the upper / lower tolerance value

         to perform GO / NG determination.

      ☆memory function : Memory 256 times (512) test data,

         and output signals.

      ☆Multifunction : Standard peak, plug test, plug pressure

         peak, pull pull peak, grab the contact signal value, set

         the list of machine type, set the area of the N value ...

         can be easily set.

      ☆ Grab peak function : One operation, can be measured

          at the same time the pressure, pull(insert / pull out) the peak.

      ☆Automatic power off function : To save power and

         protect the machine, can be set to 1 to 99 minutes.

      ☆A variety of signal output function : Can output CENTRONICS,

        RS-232C, analog, Digimatic, contacts, comparators ...

        and other signals.

      Instrument specification

      ☆Allowable load : 105% When the beep sounded.

      ☆Output signal : Analog output ± 2V FS.

      ☆Sampling speed : 640 back / sec.

      ☆Body weight : 500 g

      ☆Charging time : About 6 hours; continuous use time:

                                  about 10 hours.

      ☆power supply: Ni - Cd rechargeable battery.

         Charger (specify the use of voltage).

      ☆Standard accessories : Body, probe, AC supply,

         signal output cable, dedicated collection box.

    • Accessories
      test1
    • Notations
      test2
  •   Model
    Unit
    Maximum test range
    Minimum scale
    N
    kgf
    gf
    lbf
    N
    Kgf
    gf
    lbf
    H-1
    10
    1
    1000
    2.204
    0.001
    0.001
    0.1
    0.001
    H-2
    20
    2
    2000
    4.408
    0.01
    0.001
    1
    0.001
    H-5
    50
    5
    5000
    11.02
    0.01
    0.001
    1
    0.01
    H-10
    100
    10
    10000
    22.04
    0.01
    0.001
    1
    0.01
    H-20
    200
    20
    -
    44.08
    0.1
    0.01
    -
    0.01
    H-50
    500
    50
    -
    110.2
    0.1
    0.01
    -
    0.1
    H-100
    1000
    100
    -
    220.4
    0.1
    0.01
    -
    0.1
