Torque screwdriver test machine (DI-9 Series)
Device characteristics :
* Daily optimum torque screwdriver management
confirmation device.
* Applicable to a variety of torque screwdriver to confirm
(cross, word, hexagonal).
* Use a dedicated OW connector to measure the amount
of torque.
* Automatic power saving (10 minutes), replaceable
battery is easy to operate design.
* Zero key, auto clear setting, RS-232C data output.
Daily Transverse Tension Meter (DT)
Measuring range: 100~1000N
(10~100kG)
Model: Host —95506
Extension rod --10040
Standard test piece --10050
Torque screwdriver test machine (DI-9 Series)
|
Model
|
DI-9-08
|
DI-9-8
|
|
Measuring range
|
0.001 ~ 8 Kgf-cm
0.001 ~ 7 lbf-in
|
0.01 ~ 8 Kgf-cm
0.01 ~ 70 lbf-in
|
|
System accuracy
|
0.5 % (LCD display)
|
|
|
Measurement mode
|
track(immediate) . Peak(maximum) . Peak-down
|
|
|
power supply
|
Ni-Cd battery (x5) ; 1.2V ; 700mAh
|
|
|
Probe base
|
20 mm / 9.5 mm
|
|
|
Instrument appearance
|
155 x 125 x 55 mm ; 1Kg
|
|
|

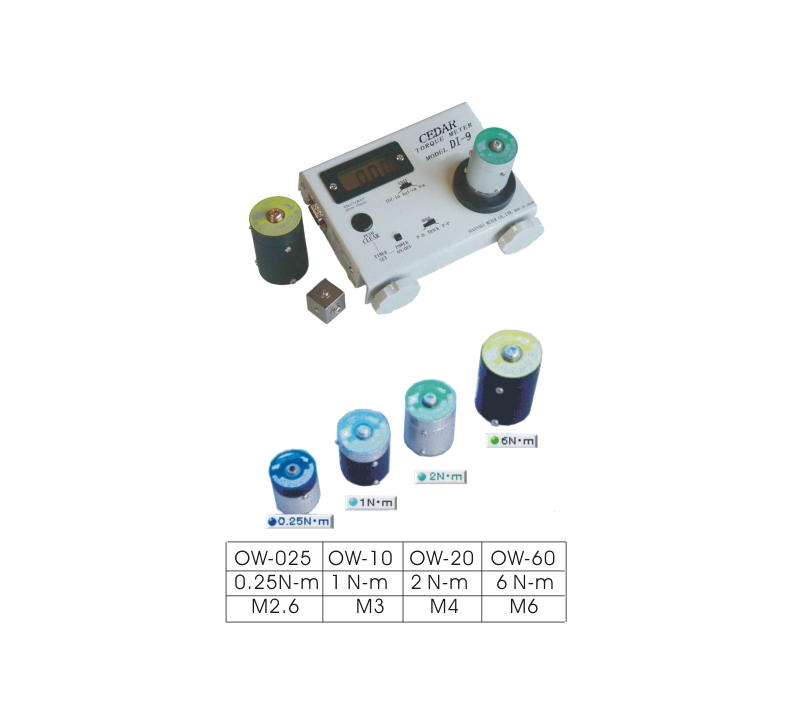

Expand the accessories
|
OW-025/OW-10 OW-20/OW60200gf
Power supply. Factory report. Retrospective proof
|
|
Daily Transverse Tension Meter (DT)
|
No needle
Attached needle
|
Model
|
Minimum reading (gf)
|
Measuring range (gf)
|
Scribe style
|
|
DT-5
|
0.2
|
0.6~5
|
0.6-5-0.6
|
|
|
DT-10G
|
0.5
|
1~10
|
1-10-1
|
|
|
DT-30G
|
1
|
3~30
|
3-30-3
|
|
|
DT-50G
|
2
|
6~50
|
6-50-6
|
|
|
DT-100G
|
5
|
10~100
|
10-100-10
|
|
|
DT-150G
|
5
|
15~150
|
15-150-15
|
|
|
DT-300G
|
10
|
30~300
|
30-300-30
|
|
|
DT-500G
|
20
|
60~500
|
60-500-60
|
