DSD series
▓ characteristic:
Screw the last bolt force
●For the final bolt tightening force for high-precision testing
and management.
●Applicable specifications: M1 ~ M5 of the screws, bolts.
●Use the LED indicator and beep to determine the test value
and setpoint.
●One-way clutch of the fastening mechanism, reducing the
generation of empty turret.

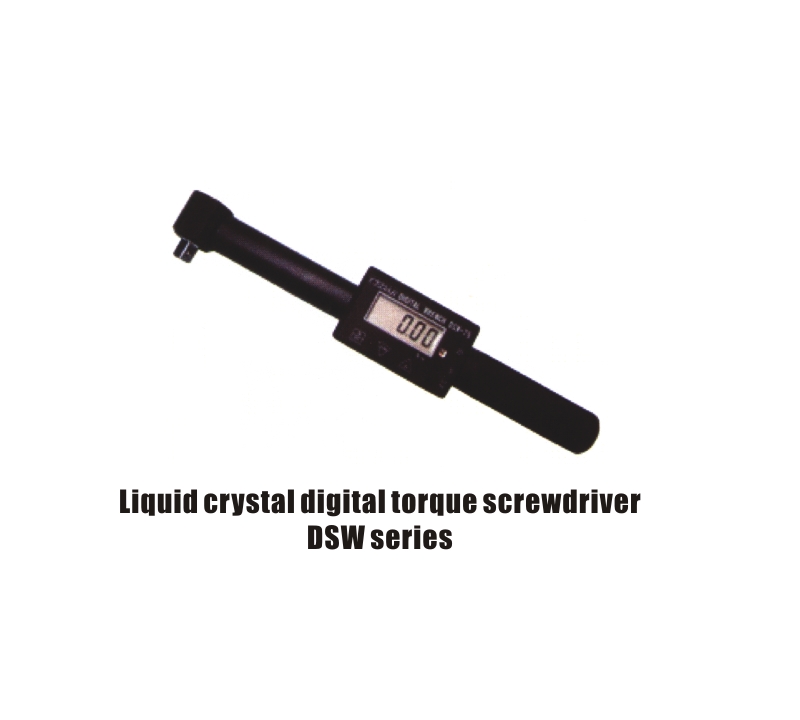

DSW series
▓ characteristic:
●For the final bolt tightening force for high-precision testing
and management.
●Applicable specifications: M1 ~ M10 of the screws, bolts.
●Use the LED indicator and beep to determine the test value
and setpoint.
|
Model
|
DSD-05
|
DSD-4
|
DSW-20
|
DSW-75
|
||
|
Measurement range
{ Please note when purchasing
Use the unit }
|
3.0~500.0 N.m
|
0.100~4.000 N.m
|
0.30~20.00 N.m
|
1.50~75.00 N.m
|
||
|
0.030~5.000 kgfcm.
|
1.00~50.00 kgfcm
|
3.0~200.0 kgfcm
|
15.0~750.0 kgfcm
|
|||
|
0.030~4.500 lbf.in
|
1.00~45.00 lbf.in
|
30.0~180.0 lbf.in
|
15.0~650.0 lbf.in
|
|||
|
Accuracy
|
±0.5%(or199 below:±1 digit)
|
|||||
|
Display window
|
4-Digital LED display screen
|
4-Digital LED display screen
|
||||
|
Measurement mode
|
P-P，T-R，P-D Three modes Function (see P-200)
|
|||||
|
Qualified or not
Judgment function
|
Set the measured value
|
Confirm the set value with the LED or beep
|
||||
|
Allow the setting of the error value
|
The upper and lower limit of the measured value of any set mode
|
The upper and lower limit of the measured value of any set mode
|
||||
|
Transmission interface
|
RS-232C(Baud rate: 9,600)
|
|||||
|
Data storage
|
400
|
|||||
|
Automatically turn off the power function
|
When the operation of any key is stopped, the power is turned off automatically after 10 minutes
|
|||||
|
power supply
|
Nickel-cadmium batteries: 1.2V / 5 pcs (600mAh)
|
|||||
|
Charge / continuous use hours
|
4 hours / 12 hours
|
|||||
|
Torque detection axis
|
6.35HEX BIT
|
□9.5mm
|
||||
|
Weight
|
356g
|
46g
|
||||
|
Standard equipment
|
a.#1，#2 Screwdriver head
b. Charging transformer
|
a.#8，10 Hexagonal standard sleeveb.
Charging transformer
|
a.#10，13 ，17 Hexagonal standard sleeve
b. Charging transformer
|
|||
|
Function (see P-200)
|
LC , RS , LH , MY , PO , IO , BA
|
LC , RS , LH , MY , PO , IO , BA
|
||||
