Type
|

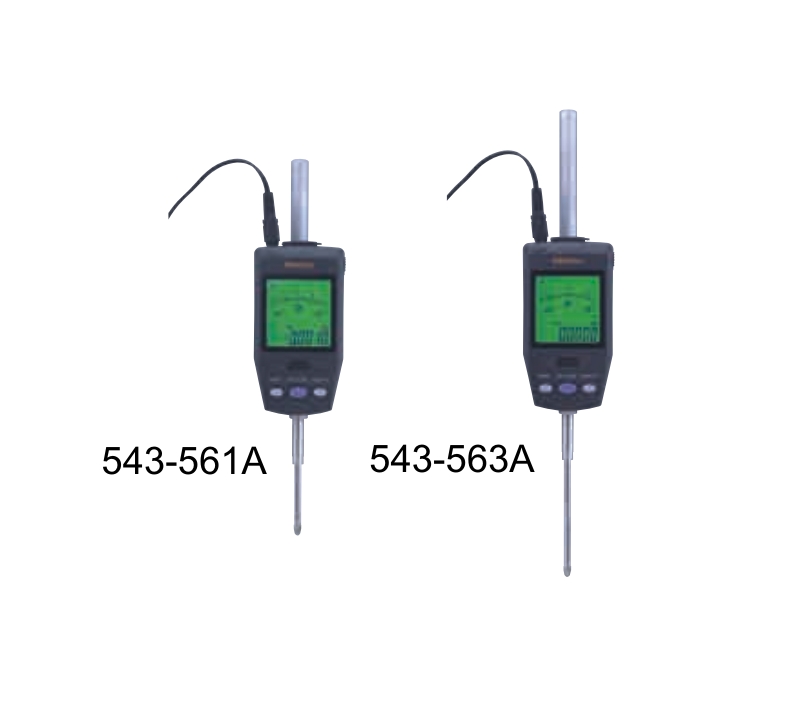

ID-H0530 (543-561A)
|
ID-H0530 (543-563A)
|
|
Measuring range
|
30.48 mm
|
60.96 mm
|
|
Minimal value
|
0.0005 / 0.001 mm Switch
|
|
|
Indicating accuracy (20℃)
|
1.5 um
|
2.5 um
|
|
Measuring force
|
2.0 N (200gf)
|
2.5 N (250gf)
|
|
Use the measurement direction
|
Vertical and horizontal
|
|
|
Maximum response speed
|
1000 mm / s
|
|
|
Display screen
|
7-bit, symbol, scale, color
|
|
|
Measuring sub
|
Spherical R = 1.5 mm (hard alloy)
|
|
|
Operating temperature
|
0 ~ 40 ℃
|
|
|
Instrument weight
|
290 g
|
305 g
|
|
power supply
|
100 V ; 50/60Hz AC 6V ; 1A
|
|
|
Standard accessories
|
Body, measuring sub, check the results book, remote control, power supply
|
|
ID-S series
|
Type
|
543-791B
|
543-782B
|
|
Measuring range
|
0.5” / 12.7mm
|
|
|
Resolution
|
0.001mm / 0.00005”
|
0.01mm / 0.0005”
|
