High Precision Altimeter - LGK

  • Porduct feature
  • Technical Scope
    • Product Name
      High Precision Altimeter - LGK
    • Product Model
      LGK
    • Characteristic

      EF display

      Function Description

      Zero set, upper and lower limit tolerance, GO /

      NG judgment, Male / English switch

      Counter direction switch, RS link, Max / Min / TIR,

      error message RS-232C output,I / O signal output

    • Accessories
      test1
    • Notations
      test2

  • LGK linear regulations 542-156

    Series number
    Measuring range
    Resolution
    Specifications
    Shaft diameter
    542-156
    0 – 10 mm
    ( 0.4" )
    1 um
    Standard type
    ψ 8mm
    542-157
    0.5 um
    Standard type
    ψ 8mm
    542-158
    0.1 um
    Standard type
    ψ 8mm

    Series number
    Accuracy
    Measuring force
    Weight
    542-156
    (1.5+L/50) um
    0.8 N
    175 g
    542-157
    0.8 N
    175 g
    542-158
    0.8 N
    175 g

    LGK Linearity 542-612

    Series number
    Measuring range
    Resolution
    Specifications
    Shaft diameter
    542-612
    0 – 25 mm
    5 um
    Standard type
    ψ15mm
    542-613
    0－50mm
    5 um
    Standard type
    ψ15mm

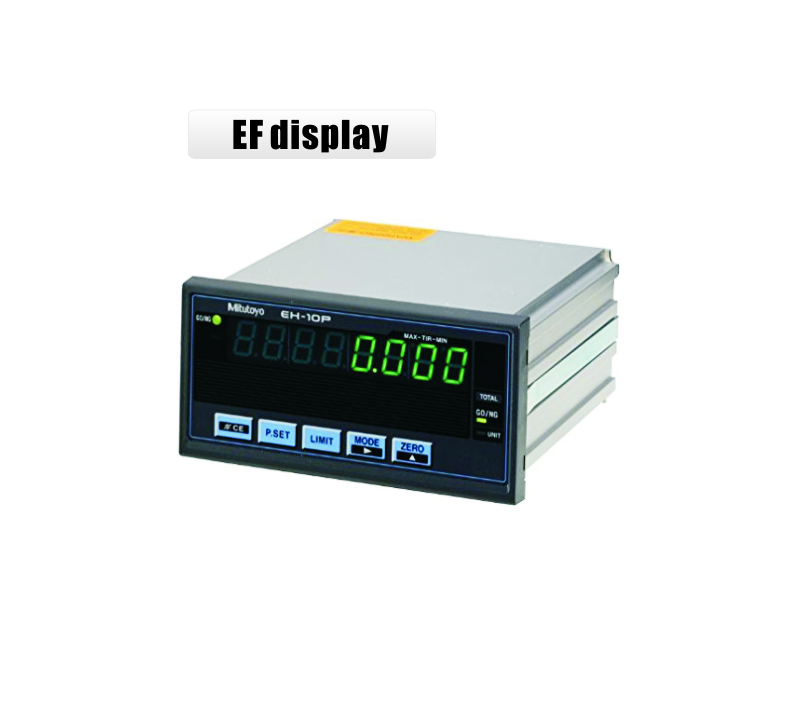

    EF display

    Series number
    Measuring equipment
    Specifications
    542-075A
    LG . LGB . LGF . LGK
    Uniaxial
    542-071A
    LG . LGB . LGF . LGK
    Biaxial
