Instrument features
☆ High reliability, durable design concept - for the job site.

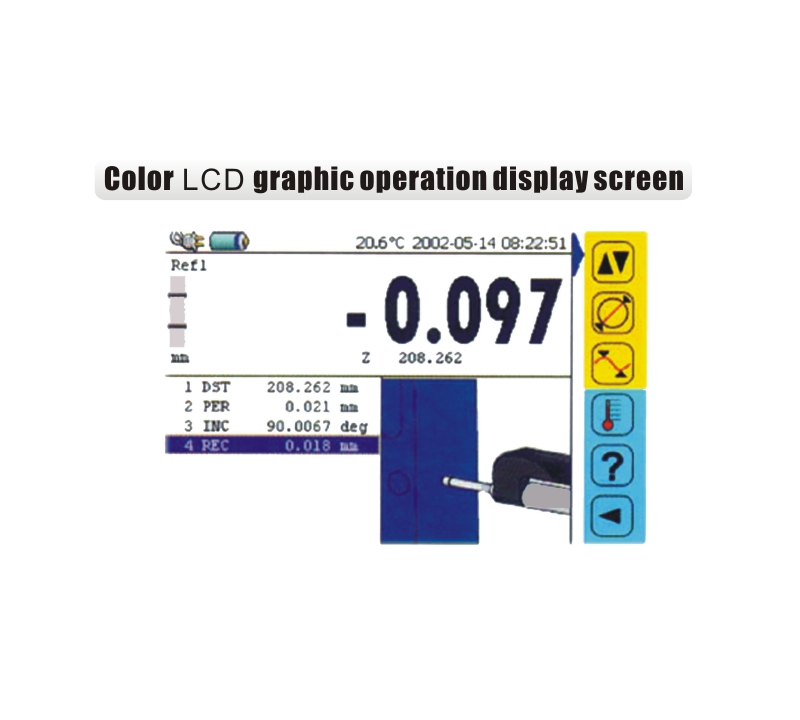

☆ Excellent artificial intelligence design and clear dialogue
on the touch screen.
☆ Use the measurement status icon for easy operation.
☆ The LED displays the tolerances of the measured values.
☆ Connect directly to the A4 printer and output the report.
☆ 2 RS232C and 2 USB ports for connection (A / B).
☆ The measurement step is programmable.
☆ 2D measurement system and statistical analysis.
☆ Enter the operating temperature for more accurate results.
Instrument standard accessories
☆VECTRA TOUCH Series ontology
☆Battery and charger (110V or 220V)
☆ ψ4 mmCarbon steel probe、ψ2 mm Ruby probe、
ψ1.5 mm Tungsten steel probe、
Head grip L=95mm 、 Lever table ruby probe M1.4 x 12 mm、
D = 1/2/3 mm each one, the depth of the annex D = 4 /8 、
Groove pin D8 can be clamped slightly 2 mm、
Depth extension rodD =4 / L=124mm
☆Standard setting rules
☆Dust cover
☆Operation Manual
☆Accuracy report and warranty book
☆Plastic collection carrying case
|
Type
|
300
|
600
|
1000
|
|
Measurement range
|
0~305/1~12"
|
0~610/0~24"
|
0~1016/0~40"
|
|
Display value
|
0.01mm / 0.001mm / 0.0001"
|
||
|
Linear accuracy
|
2.5 + L /400 um (L = measuring lengthmm)
|
||
|
Repeat accuracy
|
0.001 mm ( ψ2mm )
|
||
|
Manual moving speed
|
1000 mm / sec
|
||
|
Electric moving speed
|
150 mm / sec
|
||
|
Measure the pressure
|
0.5 ~ 1.8 N
|
||
|
power supply
|
Rechargeable battery (≧ 8 hours)
|
||
|
Full angle
|
4 um
|
6 um
|
10 um
|
|
Display
|
Color LCD，Graphical conversational operation
|
||
|
Output
|
RS232C(x2) ; USB(x2) interface
|
||
|
Full height
|
645 mm
|
950 mm
|
1357 mm
|
|
net weight
|
16 Kg
|
19 Kg
|
23 Kg
|
