LK series measurement principle
The traditional laser displacement sensor uses the PSD
(Position Sensing Detector) light receiving element and
the LK series uses the CCD light receiving element, the
light is reflected on the surface of the measured object
through the lens to focus on the PSD or CCD; PSD And the
position of the object to be measured is determined by the
light distribution amount of all the light points of the measured
element. However, since the distribution of the amount of light is
affected by the surface condition of the object to be measured,
the deviation of the measurement data is likely to occur.

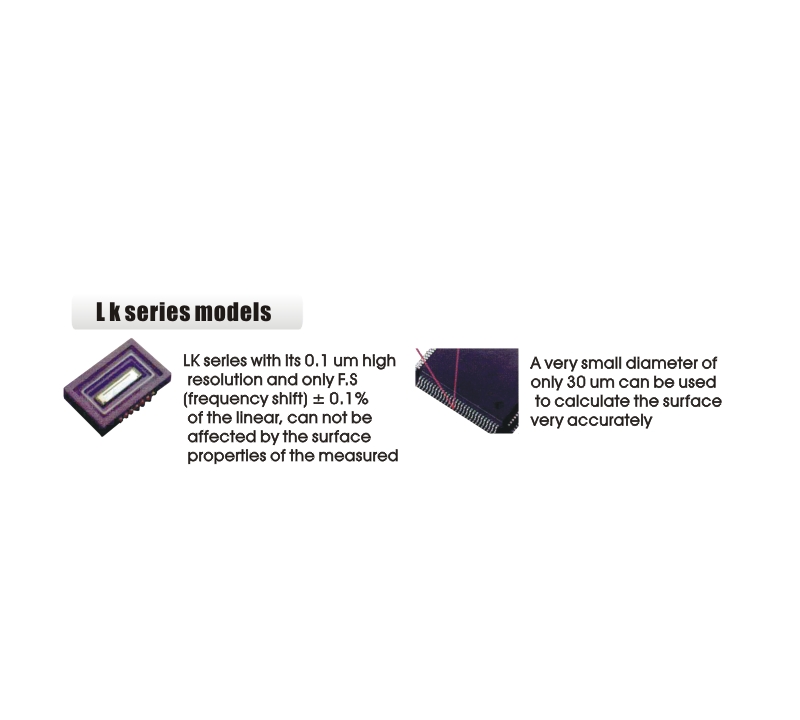

The CCD measurement point detects the peak value of the light
distribution amount of each
pixel and determines the position of the object to be measured
accordingly.
The CCD can reliably measure the object displacement with high
accuracy without being affected by the light distribution amount of
the light spot.
|
Type
|
High precision type
|
Standard type
|
Long distance type
|
||
|
Model
|
Sensor head
|

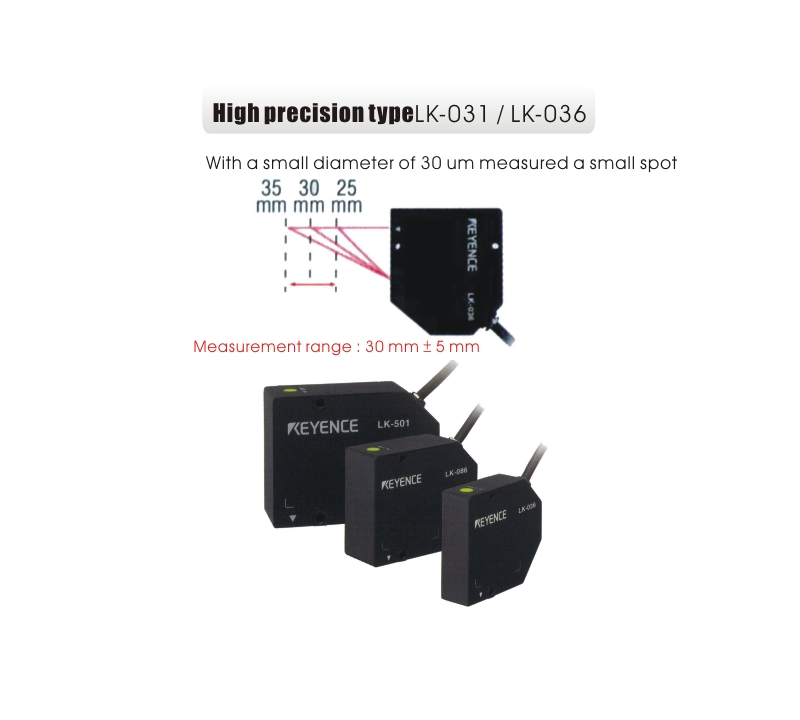

LK-031 / LK-036
|

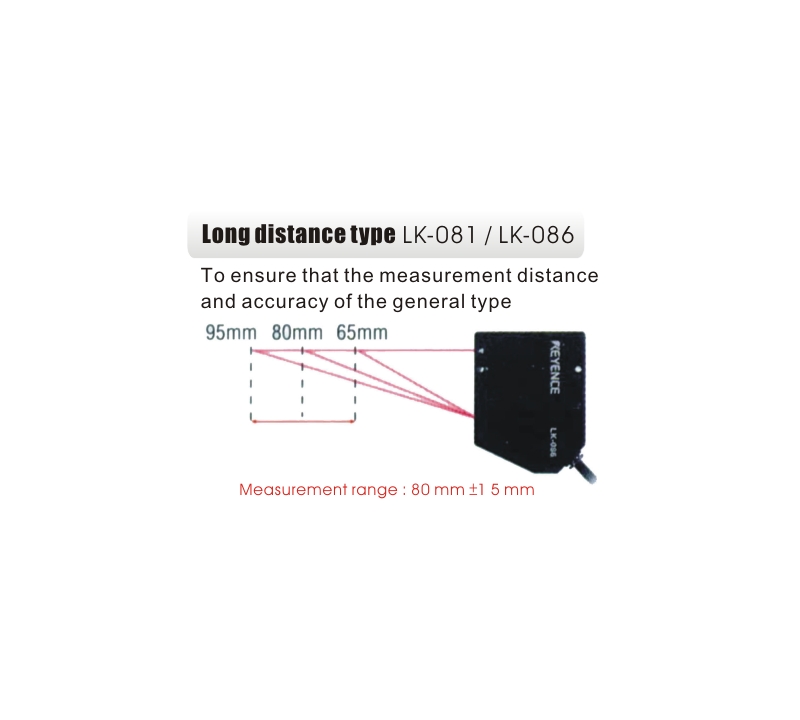

LK-081 / LK-086
|

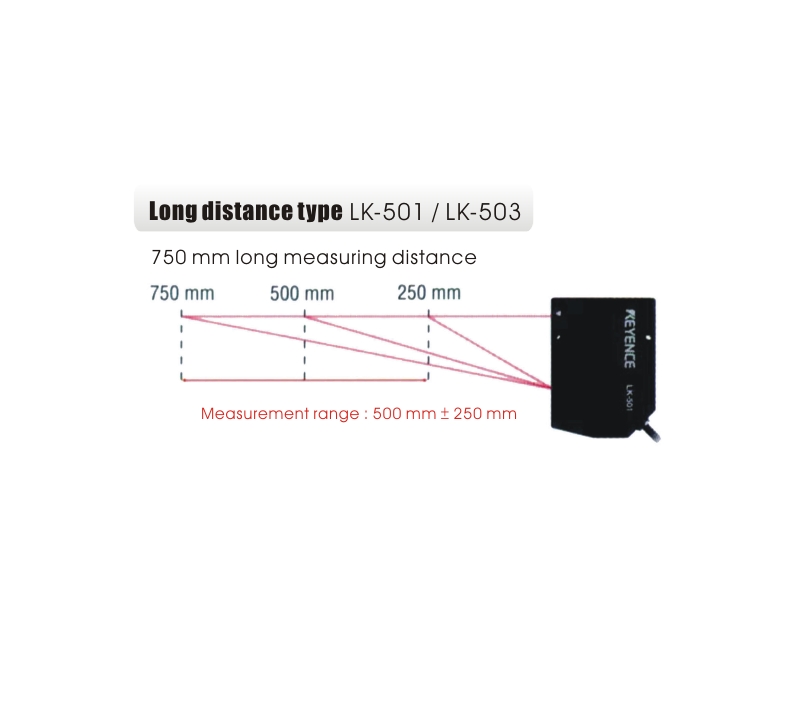

LK-501 / LK-503
|
|
|
Controller
|
LK-2001 / LK-2011
|
LK-2001 / LK-2011
|
LK-2001 / LK-2011
|
||
|
Reference distance
|
30 mm
|
80 mm
|
350 mm
|
500 mm
|
|
|
Measuring range
|
± 5 mm
|
± 15 mm
|
± 100 mm
|
± 250 mm
|
|
|
Light source
|
Red light semiconductor laser
|
||||
|
Light source wavelength
|
670 nm
|
690nm
|
|||
|
Light source level
|
Ⅱlevel
|
Ⅱlevel
|
Ⅲ b level
|
||
|
Spot diameter
|
30 um (LK-031)
|
70 um (LK-081)
|
0.7mm
|
0.3mm
|
|
|
Spot diameter
|
30x850um(LK-036)
|
70x100um(LK-086)
|
|
||
|
Resolution
|
1um
|
3um
|
10um
|
50um
|
|
|
Linearity
|
±0.1% (F.S)
|
||||
|
Sampling cycle
|
512us
|
1024us
|
|||
|
Analog output
|
±5V(1um/mV)
|
±5V(1um/mV)
|
±10V(1um/mV)
|
±5V(1um/mV)
|
|
|
power supply
|
24 VDC ±10 %
|
||||
|
Current consumption
|
most 400mA
|
||||
|
Temperature fluctuation
|
Sensor head
|
0.01 %/ ℃ (F.S)
|
0.02 %/ ℃ (F.S)
|
||
|
Control head
|
0.01 %/ ℃ (F.S)
|
||||
|
Protection level
|
IP 67
|
||||
|
Weight
|
Sensor head
|
260g
|
385g
|
700g
|
|
|
Control head
|
515g
|
||||

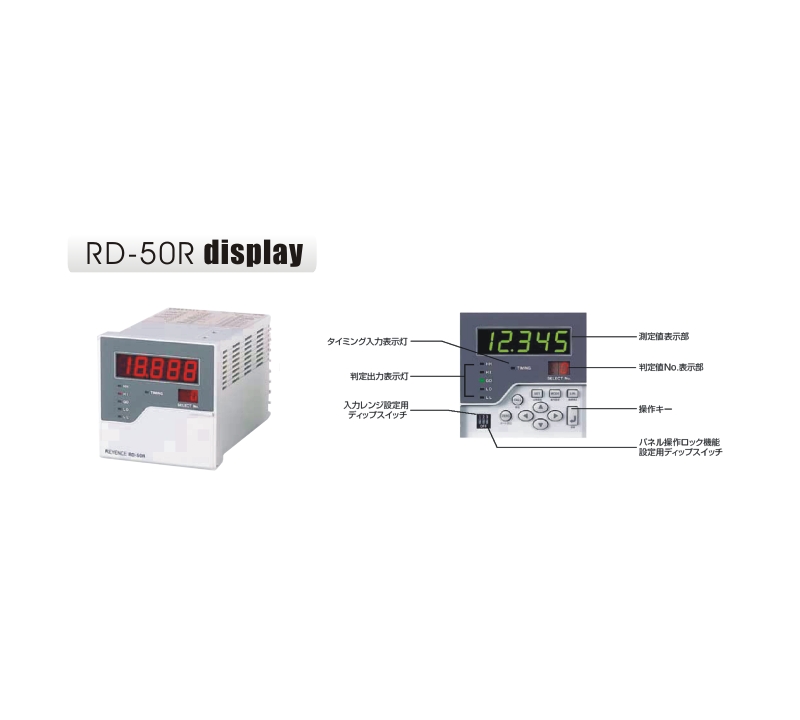

RD-50R display
|
Model
|
RD-50R
|
RD-50E
|
|
Measurement function
|
DC pressure measurement, DC current measurement
|
|
|
A / D conversion
|
Continuous comparison
|
|
|
Measurement range
|
± 5VDC , ± 10VDC , 4 ~ 20 mA DC (Can choose)
|
|
|
Display range
|
- 1999 ~ + 39999
|
|
|
Measurement accuracy
|
± 0.03 % F.S (在± 5VDC range) . ± 0.03 % F.S (在± 10VDC range)
|
|
|
± 0.05 % F.S (在 4 ~ 20 mA DC range)
|
||
|
Sampling rate
|
2000 / s
|
|
|
Display rate
|
20 / s
|
|
|
Show characters
|
7-segment 3-color LED (Character height : 15.24 mm)
|
|
|
Out of range
|
display FFFF
|
|
|
Voltage output
|
analogy ± 10 VDC
|
|
|
Interface
|
RS-232C output data and control input NPN open or no voltage contact signal input control
|
|
|
Rated power supply
|
24 VDC ± 10 %
|
|
|
Current consumption
The main function
|
most 240 mA
|
|
|
Multipoint linearizer (MDL) - Digital filter. Automatic zeroing. Compensation. Input. Data processing
Tolerance limit storage (8 groups). Decimal point displacement. Error message display
|
||
